Mingsheng Environmental Testing Equipment · Combined Stress Test Expert

Three/Four-Combination Test Chamber
and Walk-in System Customization

Integrating temperature, humidity, vibration and low pressure (altitude), fully customized by your sample size and vibration shaker specifications. From benchtop chambers to large walk-in four-combination rooms, supporting -70℃~+150℃, 20%~98%RH, 5~3000Hz vibration and down to 0.5kPa low pressure, meeting GJB 150 and MIL-STD-810G.

Get Selection & Integration Solution Consult a Technical Engineer

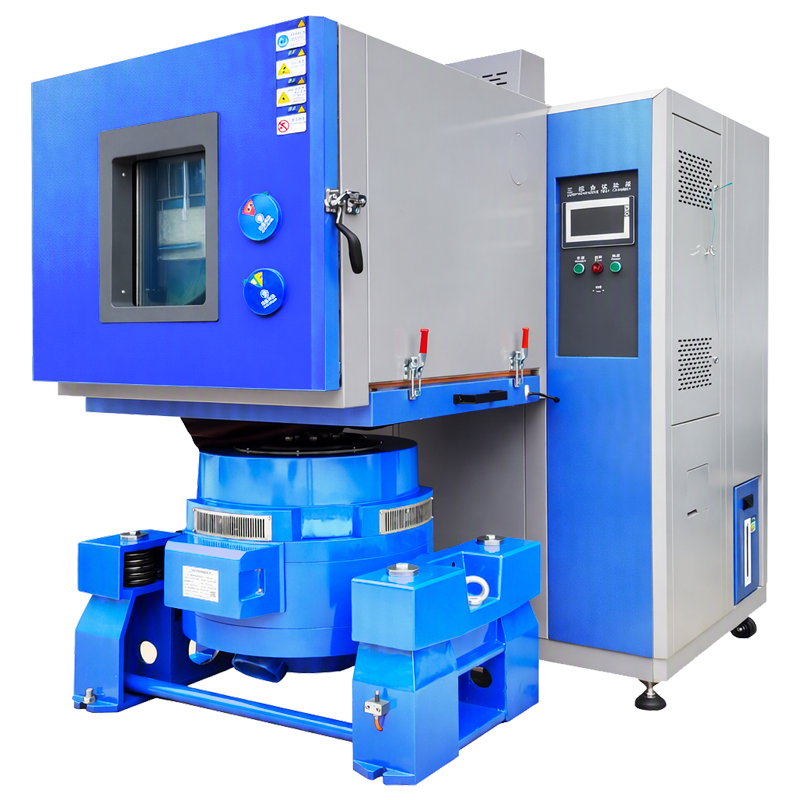

Three/four-combination environmental test chamber and walk-in system

-70 ~+150℃

Extreme Temp Coverage

20 ~98%RH

Humidity Range

5 ~3000Hz

Vibration Frequency

0.5 kPa

Extreme Low Pressure

Customization Capabilities

Full-Dimensional Non-standard Customization
Seamlessly Coupling Vibration Platform

Fully customizable dimensions, vibration interface, blank plate, vacuum evacuation and multi-system linkage for seamless shaker integration.

Vibration Shaker Interface Customization

Bottom vibration interface size cut and insulated on demand
Seamless switch base design for vertical and horizontal slip tables
Blank plate and insulation plug flexibly switch for single-temperature testing

Extreme System Customization

Rapid temperature change supports 5~20℃/min customization
High-efficiency vacuum pump group quickly reaches 0.5kPa
Multi-stage cascade refrigeration ensures stability under heat load

Seismic Structure & Safety

Reinforced cabinet frame to withstand high-acceleration impact
Dynamic sealing ring design solves high-frequency vibration air leakage
Explosion-proof, relief and anti-static special treatment

Multi-Stress Linked Control

Synchronized coupling of temperature, humidity, vibration and pressure
Communication protocol integration with mainstream vibration shaker controllers
Integrated data logging, remote monitoring and alarm

Combined Parameter Customization Range

With full non-standard customization and multi-system integration, equipment is developed around your sample characteristics and shaker specifications. Below is the customizable core parameter range; contact an engineer for specific requirements.

Exclusive Solution Get Free Selection Design Solution

Stress Category	Technical Indicator	Customization Range / Specification
Climatic Environment (Temp & Humidity)	Temperature Range	-70℃~+150℃ / -60℃~+150℃ / -40℃~+150℃ * Supports extension to +200℃ or higher
	Humidity Range	20%~98% RH (at atmospheric pressure) * Humidity range may be affected by physical limits during low-pressure testing, adjust by working condition
	Ramp Rate	Standard: 1.0~3.0℃/min; rapid temperature change: 5/10/15℃/min (linear or non-linear)
	Fluctuation / Uniformity	Temperature fluctuation ≤±0.5℃, uniformity ≤±2.0℃; humidity deviation ±2%~±3% RH
Altitude Environment (Low Pressure)	Pressure Range	Atmospheric pressure ~ 0.5kPa (equivalent to approx. 32,000 meters altitude)
	Decompression Time	Atmospheric pressure to 1kPa ≤30min (extreme rapid decompression e.g. 15min customizable)
	Pressure Deviation	Atmospheric~40kPa: ±2kPa; 40kPa~4kPa: ±5%; below 4kPa: ±0.1kPa
Mechanical Environment (Vibration)	Matched Vibration Shaker	Supports 10kN~200kN thrust vibration shakers (sine, random, shock)
	Interface Type	Base plate movable sealing blank plate, supporting vertical extension table and horizontal slip table push-in connection
	Frequency & Acceleration	Depending on shaker performance: 5~3000Hz / max acceleration 100g, etc.
System Integration	Controller	Multi-channel coordinated programmable touch controller, supporting complex multi-factor script operation
	Insulation & Sealing	Specially-made ceramic insulation layer, dynamic high-tension silicone rubber sealing to resist vibration displacement friction and air leakage
	Movement System	Base equipped with hydraulic lifting system or floor rail sliding system for quick alignment between chamber and shaker

Compliant with the Following Test Standards

GJB 150.24A-2009 Temperature-Humidity-Vibration-Altitude Test
MIL-STD-810G Environmental Engineering Considerations and Laboratory Tests
GB/T 2423.59-2008 Test Z/ABMFh: Temperature / Low Pressure / Vibration
GB/T 2423.21/25/26 Low Pressure and Combined Test Methods
GB/T 2423.10-2008 Environmental Testing Test Fc: Vibration (Sinusoidal)
GB/T 2423.56-2018 Test Fh: Broadband Random Vibration

Core Equipment Craftsmanship

Extreme Craftsmanship for Combined Stress

Aerospace-grade precision that solves seismic, sealing and structural fatigue challenges under high acceleration and deep vacuum.

Multi-Channel Coordinated Intelligent Coupling Algorithm

A built-in high-order matrix algorithm coordinates the dynamic balance of temperature, humidity and pressure, automatically compensating heat during vacuum evacuation to avoid temperature loss.

Dynamic Flexible Thermal Insulation Sealing

The shaker interface uses a proprietary ceramic insulation layer and double-layer silicone rubber sealing, absorbing high-frequency vibration displacement for leak-free low-pressure operation.

Aerospace-Grade Full Weld & Seismic Reinforcement

Thickened SUS304/316L inner liner with full argon-arc welding plus exterior mesh reinforcement withstands pressure differentials and 100g vibration impact.

High-Efficiency Vacuum Evacuation & Gas Replenishment

A high-speed rotary vane vacuum pump with pneumatic isolation and fine-tuning valves delivers rapid, stable decompression, with dust-free dry gas replenishment to protect test samples.

EMC-Grade Anti-Interference Electrical Wiring

Power and signal wiring are fully separated with multi-layer shielded cables, protecting sensors from shaker magnetic fields and high-frequency inverter interference.

Multi-Mode Flexible Assembly Architecture

Integrated or split control-cabinet design based on on-site space, with lifting or translation rails for quick docking with the shaker.

Higher Requirements for Craftsmanship Standards?

Every unit is rigorously tested from material selection to delivery. Tell us your requirements and we will provide one-on-one craftsmanship customization.

Get Exclusive Craftsmanship Solution

Customization Process

Custom Chamber Customization
Standard Delivery Process

Customizing a chamber is like tailoring a suit. Our rigorous 5-step process, from requirements to delivery, ensures the equipment fully matches your test requirements.

2Hours

Rapid preliminary solution

100%

Meets testing standard specifications

72h

Factory extreme aging run

1Year

Free full-machine warranty

Senior Engineering Team On-site

Large walk-in test rooms are provided with factory-engineer on-site survey, installation and SAT acceptance services.

Requirements Alignment & On-site Survey

Interviews lock in sample size, heat generation and key parameters. For large equipment, engineers conduct on-site site and power surveys.

Confirm multi-stress coupling parameters Assess site ventilation and load-bearing

Design & Confirmation

3D modeling and CFD simulation produce CAD and layout drawings plus system calculations. We then finalize the technical agreement and acceptance standards.

Output 3D structural drawings Provide multi-system linkage proposal

Flexible Production & Precision Manufacturing

Using international first-tier components, from laser-cut sheet metal to nitrogen-filled oxygen-free pipe welding. The stainless steel liner is fully argon-arc welded to prevent cracking or leakage.

Nitrogen-filled oxygen-free pipe welding International first-tier component assembly

Pre-shipment Inspection & Acceptance

A continuous 72-hour no-load/loaded operation test verifies performance, with multi-point calibration of temperature uniformity and a full factory inspection report.

72h extreme aging assessment Issue full FAT report

On-site Delivery & SAT Acceptance

Dedicated transport with on-site assembly, commissioning and system integration, plus third-party metrology verification and operation training.

Start Non-standard Assessment Now

Vertical Industry Solutions

Aerospace & High-End Manufacturing
Four-Combination Stress Test Expert

Covering aviation, aerospace, military and new energy vehicles, with realistic extreme environment simulation for airborne equipment, missile components and powertrains.

Industry 01 Aerospace & Military

Airborne Equipment Four-Combination Reliability Test

For radar, avionics and missile guidance components, four-factor testing combines temperature, humidity, low pressure and vibration. It reproduces the rapid pressure drop, temperature change and engine vibration of a fighter climbing to 10,000 meters, meeting GJB 150.24A.

Vacuum evacuation system can simulate pressure up to 32,000 meters altitude

Four-factor intelligent coupling avoids condensation and temperature loss under deep vacuum

Supports explosive decompression and rapid decompression test customization

Industry 02 Automotive & Components

Automotive Electronics Temperature-Humidity-Vibration Three-Combination Test

For EV three-electric systems, center consoles and sensors, three-combination testing pairs temperature/humidity cycling with random vibration, exposing solder fatigue and resonance that single tests miss, per ISO 16750 and GB/T 2423.

Supports seamless docking with high-thrust shaker horizontal/vertical slip tables

Dynamic thermal insulation blank plate effectively isolates high/low temperature to protect the shaker table

Walk-in architecture supports in-situ testing of large complete assemblies

Industry 03 Power Battery & Energy Storage

Power Battery Extreme Combined Working-Condition Test

For battery packs and energy storage modules, simultaneous vibration and pressure change simulate plateau extreme-cold conditions, evaluating cell safety and sealing failure risk with an integrated explosion-proof relief system.

Standard aerospace-grade explosion-proof door, smoke alarm and inert gas fire suppression

Reinforced load-bearing base plate for high-intensity vibration of multi-ton battery packs

Deep communication with charge-discharge equipment for loaded joint testing

Industry 04 High-End Communications & Electronics

Precision Electronics Highly Accelerated Life Test (HALT)

For base stations, precision instruments and semiconductor chips, broadband random vibration plus rapid temperature change exposes early process and design defects, shortening validation cycles and improving reliability.

High-speed linear temperature change combined with full-band random vibration to excite fatigue

EMC-grade shielded wiring ensures interference-free weak signal acquisition

Flexible blank plate switching to transform into an independent temperature chamber anytime

Need four-combination test rig integration solution materials?

Including shaker docking cases, thermal insulation blank plate drawings, and GJB 150.24A test curve interpretation.

Get Industry-Specific Solution

Customer Cases

Proven by Strength
Quality Witnessed by Delivered Cases

A selection of delivered environmental testing cases across aerospace, new energy batteries, automotive electronics and semiconductors, showcasing real projects and testing capabilities.

View All Delivered Cases

UL Meihua Certification (Underwriters Laboratories)

UL Meihua Certification Co., Ltd. successfully ordered a high/low temperature cyclic damp heat test chamber from Guangzhou MingSheng Testing Equipment Co., Ltd. and passed on-site acceptance, providin

CCIC Southern Testing Co., Ltd.

CCIC Southern Testing Co., Ltd. successfully signed a contract with Guangzhou MingSheng Testing Equipment Co., Ltd. for a high/low temperature cyclic damp heat test chamber. The equipment has been ins

Centre Testing International Group Co., Ltd. (CTI)

The high/low temperature test chamber and rapid temperature change test chamber supplied by Guangzhou MingSheng Testing Equipment Co., Ltd. to Centre Testing International Group have been successfully

Harbin Pharmaceutical Group Co., Ltd.

The walk-in high/low temperature test room from Guangzhou MingSheng Testing Equipment Co., Ltd. was successfully delivered and put into service at Harbin Pharmaceutical Group, providing large-scale hi

Guangzhou Well Lead Medical Co., Ltd.

In its first cooperation with Guangzhou Well Lead Medical, Guangzhou MingSheng Testing Equipment Co., Ltd. successfully delivered and commissioned a high/low temperature cyclic damp heat test chamber

Shenzhen Snibe Biomedical Engineering Co., Ltd.

The walk-in high/low temperature test chamber and high/low temperature low pressure test chamber supplied by Guangzhou MingSheng Testing Equipment Co., Ltd. to Shenzhen Snibe Biomedical Engineering Co

Contact Channels

Get Three/Four-Combination System Custom Quote

Provide your shaker parameters and sample requirements, and our engineers will give blank plate integration advice and a preliminary solution within 2 hours.
