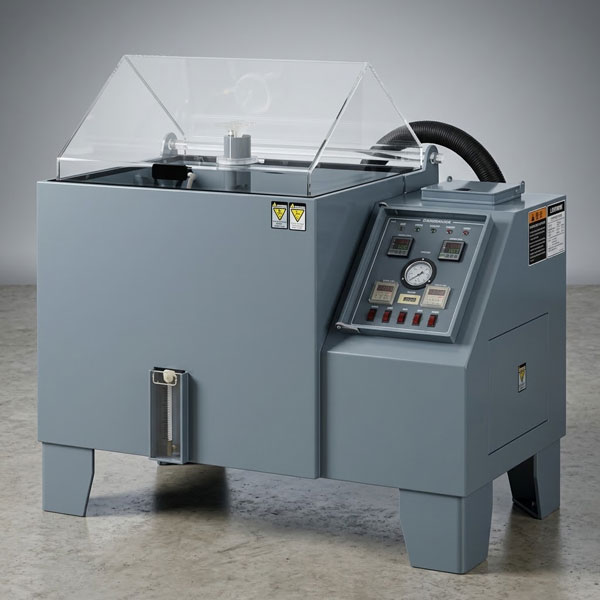

Salt Spray Corrosion Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Salt spray chamber / salt spray corrosion test chamber / salt fog chamber / cyclic corrosion salt spray chamber / salt spray test chamber
Application
The salt spray chamber is one of the artificial climate “three protections” (damp heat, salt spray, mold) test equipment, and is a device that simulates the diffuse system formed by tiny salt-containing droplets in the atmosphere. It is widely used for salt spray corrosion tests of electronic and electrical, automotive, motorcycle and hardware tool products, components, metal materials and products, and their plating and coatings. Its performance indicators meet the requirements of GB/T 5170.8 “Basic parameter verification methods for environmental test equipment for electric and electronic products”; it is designed and manufactured per GB/T 2423.17 “Basic environmental test procedures for electric and electronic products — Test Ka: Salt mist method”, implementing the national standard GB/T 10587 “Technical specifications for salt spray test chambers”, and performs various salt spray tests according to equivalent IEC, DIN, MIL and ASTM standards. Besides neutral salt spray tests, it can also be used for acetate salt spray tests.
Chamber Structure
- Overall molding: formed by high-temperature welding, corrosion-resistant, easy to clean, with no leakage.
- Spraying system: tower-type spraying system equipped with a salt solution filtration system and non-crystallizing nozzles; the salt fog is uniformly distributed and the fallout rate is freely adjustable.
- Lid: made of transparent material so the test items and spraying condition inside the chamber can be clearly seen.
- Sealing structure: water-seal structure between the chamber lid and body, with no salt fog overflow.
- Control circuit board: and other components are fixed in positions easy to inspect and maintain; the side cover door opens with a door lock, both attractive and convenient for maintenance.
Control System
- Temperature controller: high-precision PID temperature controller with an error of ±0.1°C; RKC, OMRON, TEMI880 instruments (optional).
- Printing function: the temperature controller has an output printing function; the printing interval and printing speed can each be set separately (optional).
- Lid opening: cylinder-operated support strut, easy and effortless to open and close.
- Safety circuit breakers: all circuits are equipped with circuit breakers, and all heaters have electronic and mechanical overheat protection.
- Multiple protections: multiple system protections, safe and reliable in use.
Standards
- GB/T 2423.17
- GB/T 10125-1997
- GB 10587
- GB 6460
- GB 1771
- ASTM B117, GJB 150
- DIN 50021-75
- ISO 3768, 3769, 3770
- CNS 3627, 3885, 4159, 7669, 8866
- JIS D-0201, H-8502, H-8610, K-5400, Z-2371 and other standards
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | YWX/Q-150 | YWX/Q-250 | YWX/Q-750 | YWX/Q-010 | YWX/Q-020 | |
| Working chamber size D×W×H (mm) | 450×600×400 | 600×900×500 | 750×1100×500 | 850×1300×600 | 900×2000×600 | |
| External size D×W×H (mm) | 700×1200×1100 | 950×1500×1200 | 1100×1700×1250 | 1150×2100×1550 | 1250×2800×1600 | |
| Power | 1.3 (kW) | 1.5 (kW) | 1.8 (kW) | 4.5 (kW) | 6.5 (kW) | |
| Performance | Temperature range | Room temperature +5°C~55°C | ||||
| Temperature uniformity | ±2°C | |||||
| Temperature fluctuation | ±0.5°C | |||||
| Salt spray fallout rate | 1~2 ml / 80cm²·h | |||||
| Spraying mode | Continuous or cyclic, selectable | |||||
| Test timer | 1~9999 (s, min, h) adjustable | |||||
| Temp. & humidity control system | Temperature control | LED digital PID + S·S·R microcomputer integrated controller | ||||
| Temperature sensor | Platinum resistance PT100Ω/MV | |||||
| Heating system | Fully independent system, nickel-chromium alloy electric heaters | |||||
| Spraying system | Tower-type spray device with non-crystallizing nozzles (finer and more uniformly distributed fog particles) | |||||
| Spray time | 1~9999 (s/min/h) with adjustable cycle | |||||
| Salt solution collection | Equipped with standard funnels and standard measuring cylinders | |||||
| Salt solution filtration | Water-quality filter fitted at the suction tube (prevents nozzle clogging from interrupting the test) | |||||
| Salt solution preheating | Salt solution temperature equalized with chamber temperature (so a too-low salt solution temperature does not affect the test temperature) | |||||
| Materials | Chamber body | Imported corrosion-resistant, aging-resistant, high-strength PVC plate | ||||
| Inner chamber | Imported corrosion-resistant high-strength PVC / imported corrosion-resistant, high-strength, aging-resistant, high-temperature-resistant PP plate | |||||
| Chamber lid | Imported corrosion-resistant high-strength transparent PVC / imported corrosion-resistant, high-strength, high-temperature-resistant transparent PC plate | |||||
| Other accessories | All made of stainless steel, copper, or corrosion-resistant, high-temperature-resistant materials | |||||
| Standard accessories | 1 set each of round-bar and V-type specimen racks, 2 nozzles, funnels, 2 sets of measuring cylinders | |||||
| Safety protection | Earth leakage, short circuit, over-temperature, water shortage, test-end indication and over-current protection | |||||
| Power supply voltage | AC220V ±10%, 50Hz / AC380V ±10%, 50Hz | |||||
| Operating ambient temperature | 5°C~+30°C, ≤85%RH | |||||
| Sealing | Water-seal structure, no salt fog overflow | |||||
| Specifications are subject to change without notice. | ||||||
