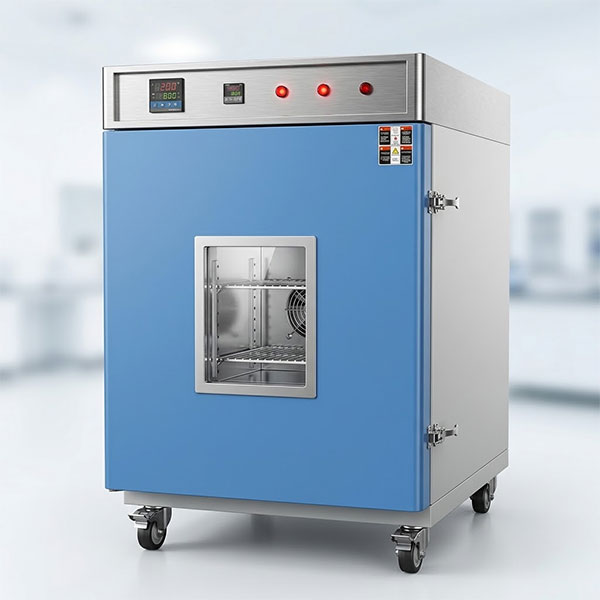

High Temperature Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
High temperature test chamber / high temperature chamber / high temperature constant temperature chamber / high temperature box
Application
The high temperature test chamber is used to test the performance indicators of components and materials for products in the electronic and electrical, automotive and motorcycle, aerospace, rubber, plastics, metal, shipbuilding and defense, university and research sectors under high-temperature constant-temperature changes.
Chamber Structure
The inner chamber of the high temperature test chamber is argon-arc welded from stainless steel mirror plate (or hairline plate); the outer shell is high-quality steel plate with powder coating, with an attractive and novel appearance. The hot air circulation system consists of a fan that can run continuously at high temperature and a special air duct, giving a uniform working-chamber temperature. The independent over-temperature alarm system automatically interrupts when the limit temperature is exceeded, ensuring safe experimental operation without accidents. A large-area tempered glass observation window is provided for observing the condition of the working chamber.
Control System
- Temperature instrument: temperature control uses a fully imported touch-key instrument; operation and setting are simple.
- Lock function: after data and test conditions are entered, the controller has a lock function to prevent temperature values from being changed by unintended touching.
- PID auto-tuning: the PID auto-tuning function instantly corrects temperature change conditions, making temperature control more precise and stable.
- Options: a printer is available as an option.
Standards
- GB/T 2423.1-2001
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | GW-100 | GW-225 | GW-500 | GW-010 | |||
| Working chamber size D×W×H (mm) | 450×450×500 | 500×600×750 | 800×700×900 | 1000×1000×1000 | |||
| External size D×W×H (mm) | 1000×800×1100 | 1050×950×1350 | 1250×1150×1500 | 1550×1350×1600 | |||
| Performance | Temperature range | RT+10°C~200°C, 300°C | |||||
| Control accuracy | ±1% (full scale) | ||||||
| Constant temperature fluctuation | ±0.5°C | ||||||
| Temperature uniformity | ±2°C | ||||||
| Control system | Controller | LED digital P·I·D + S·S·R microcomputer integrated controller | |||||
| Heating system | Fully independent system, nickel-chromium alloy electric heaters | ||||||
| Timer range | 1~9999 min | ||||||
| Circulation system | High-temperature-resistant low-noise motor, multi-blade centrifugal blower | ||||||
| Safety protection | Earth leakage, short circuit, over-temperature, motor overheat and over-current protection | ||||||
| Air inlet/outlet volume function | Manually adjustable knob | ||||||
| Power supply voltage | AC220V ±10%, 50±0.5Hz / AC380V ±10%, 50±0.5Hz | ||||||
| Note: 1. “GW” is the model code of the high temperature test chamber. 2. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. 3. An intelligent program temperature controller is available as an option. |
|||||||
