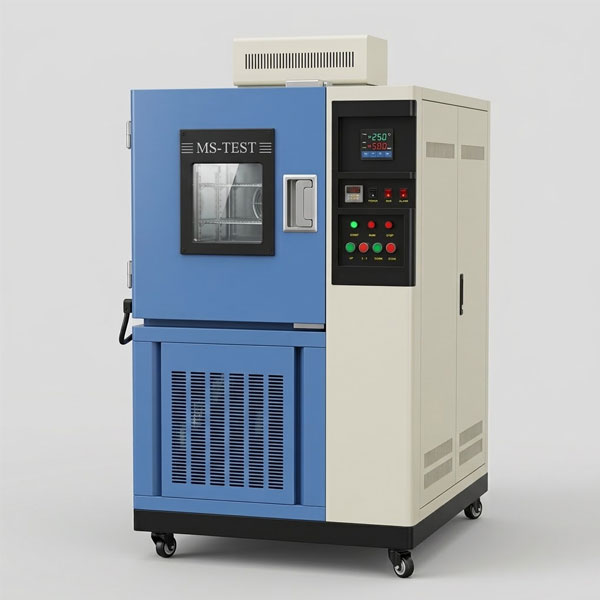

Low Temperature Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Low temperature test chamber / low temperature constant temperature test chamber / low temperature test machine
Application
This equipment is suitable for testing the performance indicators of products under low-temperature environments.
Chamber Structure
- Overall forming: the chamber body is CNC-machined with an attractive, generous appearance, and uses non-reactive handles for easy operation.
- Inner chamber material: imported high-grade stainless steel (SUS304) mirror plate; the outer shell is A3 steel plate with powder coating, enhancing the appearance and cleanliness.
- Observation window: a large observation window with lighting keeps the chamber interior bright, and laminated tempered glass with embedded heating elements allows clear observation of the chamber interior at any time.
- Test port: a Ø50mm test port on the left side of the chamber for external test power supply or signal cables.
Control System
- Temperature instrument: temperature control uses a fully imported touch-key instrument; operation and setting are simple.
- Lock function: after data and test conditions are entered, the controller has a lock function to prevent temperature values from being changed by unintended touching.
- PID auto-tuning: the PID auto-tuning function instantly corrects temperature change conditions, making temperature control more precise and stable.
- Options: a printer is available as an option.
Refrigeration System
The refrigerator of the low temperature test chamber uses original French “Tecumseh” fully hermetic compressors. The refrigeration system adopts a single-unit or binary low-temperature circuit design. A multi-blade blower provides strong air circulation, avoiding any dead zone and ensuring uniform temperature distribution in the test area. The supply and return air path design meets test standards for air pressure and velocity, with fast temperature recovery when the door is opened. The heating and cooling systems are fully independent, improving efficiency, reducing test cost, extending service life and lowering the failure rate.
Standards
- GB/T 2423.1-2001
- GB/T 2423.2-2001
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | DW-100 | DW-225 | DW-500 | DW-800 | DW-010 | |
| Working size D×W×H (mm) | 450×450×500 | 500×600×750 | 800×700×900 | 800×1000×1000 | 1000×1000×1000 | |
| External size D×W×H (mm) | 1150×1050×1750 | 1200×1100×1900 | 1450×1400×2150 | 1500×1550×2200 | 1720×1580×2280 | |
| Power A/B/C/D (kW) | 3.0/4.0/4.5/6.0 | 3.5/5.0/5.5/6.5 | 6.0/7.0/7.5/8.5 | 7.0/9.0/11.0/12.5 | 9.0/10.0/11.5/13.0 | |
| Performance | Temperature range | A: RT~-20°C; B: RT~-40°C; C: RT~-60°C; D: RT~-80°C | ||||
| Fluctuation / uniformity | ±0.5°C / ±2°C | |||||
| Heat-up time | 1~3°C/min | |||||
| Cool-down time | 0.7~1°C/min | |||||
| Temperature control system | Controller | Imported LED digital P·I·D + S·S·R microcomputer integrated controller | ||||
| Accuracy range | Setting accuracy: temperature 0.1°C; indication accuracy: temperature 0.1°C | |||||
| Temp. & humidity sensors | Platinum resistance PT100Ω/MV | |||||
| Heating system | Fully independent system, nickel-chromium alloy electric heaters | |||||
| Refrigeration system | Fully hermetic air-cooled single-stage compression / original French “Tecumseh” / fully hermetic air-cooled cascade compression | |||||
| Circulation system | Temperature-resistant low-noise HVAC-type motor, multi-blade centrifugal blower | |||||
| Materials | Outer chamber | High-quality carbon steel plate, phosphated and powder coated / SUS304 stainless steel matte hairline finish | ||||
| Inner chamber | SUS304 stainless steel high-quality mirror plate | |||||
| Insulation | Rigid polyurethane foam, ultra-fine glass fiber wool | |||||
| Door frame insulation | Double-layer high/low-temperature aging-resistant silicone rubber door seal | |||||
| Standard accessories | 1 set of multi-layer anti-frost illuminated glass viewing window, 2 specimen shelves, 1 test lead port (25, 50, 100mm) | |||||
| Safety protection | Earth leakage, short circuit, over-temperature, motor overheat, compressor over-pressure, overload and over-current protection | |||||
| Timer function | 0.1~999.9 (s, min, h) adjustable | |||||
| Power supply voltage | AC380V ±10%, 50±0.5Hz, three-phase five-wire | |||||
| Operating ambient temperature | 5°C~+30°C, ≤85%RH | |||||
| Note: 1. “DW” is the model code of the low temperature test chamber. 2. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. 3. Non-standard low temperature test rooms can be made according to the customer's specific requirements. Specifications are subject to change without notice. |
||||||
