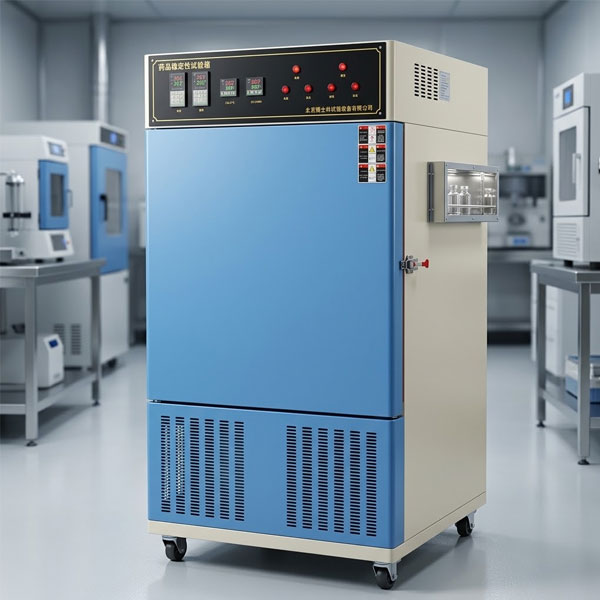

Pharmaceutical Stability Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Pharmaceutical stability test chamber
Application
The pharmaceutical stability test chamber is used for research in the pharmaceutical, medical, biotechnology and food industries, the electronics industry and all related industries including life sciences. It meets the WHO guidance requirement of long-term stability testing conditions at 25°C/60%RH; the 6-month accelerated test at 40°C/75%RH is the standard of the pharmaceutical stability testing field. The chamber mainly simulates temperature, humidity and illumination of the environmental climate.
Chamber Structure
- Appearance design: an innovative arc-shaped design gives the equipment an attractive overall appearance.
- Chamber material: mirror-finish SUS304B plate, acid-resistant, corrosion-resistant and easy to clean.
- Specimen shelves: adjustable up and down as required.
- Test lead port: located on the left side of the working chamber; the cover can be opened during use.
- Door: large-view vacuum-insulated tempered glass window for easy observation of the specimen test process.
- Sealing and insulation: high-quality magnetic door seals and insulation materials give the whole machine superior performance.
- Air duct circulation: a professionally designed air circulation system based on years of laboratory experience achieves the highest temperature and humidity uniformity inside the chamber.
Control System
Temperature and humidity are controlled by an imported LCD touch-screen controller with precise setpoint and display of relative temperature and humidity; resolution reaches 0.1°C / 0.1%RH.
Refrigeration System
- Compressor: original Danish “Danfoss” fully hermetic compressor; compact, light, low noise and high efficiency; world-renowned for its long-life, low-noise design and a symbol of efficiency and energy saving. Danfoss compressors are widely used in display freezers, vending machines, vehicle and marine refrigerators, household and commercial refrigerators, chillers, dehumidifiers and low-temperature laboratory equipment.
- Cooling capacity: LBP-25/55°C: 90-150W.
- Refrigerant: imported R404 or R23.
- Condenser: air-cooled coil.
- Evaporator: fin type.
- Other accessories: refrigeration filter drier, solenoid valve.
Standards
The pharmaceutical stability test chamber is manufactured according to the stability testing guidance principles of the 2005 edition of the Pharmacopoeia and the relevant clauses of GB 10586-8.
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Name | Pharmaceutical stability test chamber | Comprehensive pharmaceutical stability test chamber | ||
| Model | YP-150SD | YP-150SDP | YP-150GSP | |
| YP-250SD | YP-250SDP | YP-250GSP | ||
| YP-500SD | YP-500SDP | YP-500GSP | ||
| Volume / inner / outer size | 150L | 600*405*620mm | 800*910*1630mm | |
| 250L | 680*500*730mm | 880*1010*1740mm | ||
| 500L | 800*700*900mm | 1000*1210*1900mm | ||
| Performance | Temperature range | Without light: 0~65°C | With light: 10~65°C | |
| Temperature fluctuation | ±0.5°C | |||
| Humidity range | 40~95%RH | |||
| Illumination | 0~6000 lx adjustable | |||
| Illumination error | ≤±500 lx | |||
| Temp./humidity control mode | Balanced temperature and humidity control | |||
| Refrigeration system | Refrigeration mode | Direct-cooling high-efficiency refrigeration | ||
| Refrigerating machine | Imported fully hermetic compressor | |||
| Cooler | Fin-type air-cooled cooler | |||
| Control system | Controller | Microcomputer control (Japanese OYO instrument) | Programmable controller (Korean TEMI880 instrument) | |
| Temperature sensor | Platinum resistance PT100Ω/MV | Imported temp./humidity transmitter | ||
| Fan | Centrifugal fan blade | |||
| Ambient operating temperature | +5~30°C | |||
| Power supply | AC 220V ±10% 50Hz | |||
| Specimen trays (standard) | 2 pieces | |||
| Safety protection | Compressor overheat, overload, water shortage, over-temperature and electrical short-circuit protection | |||
