Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name

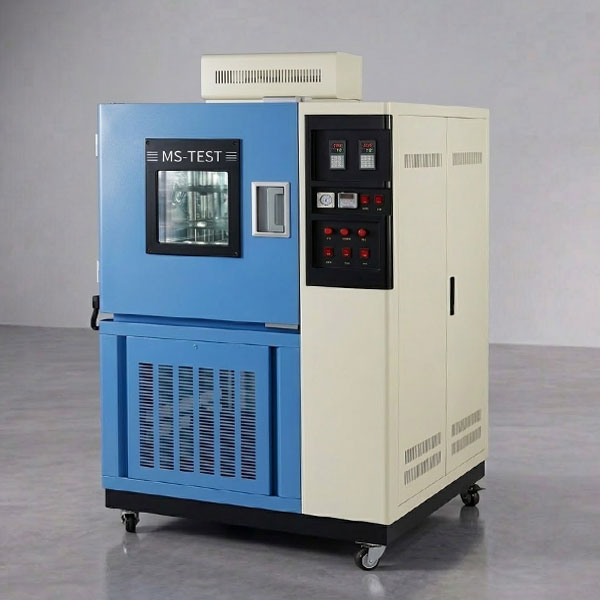

Programmable damp heat test chamber / high/low temperature damp heat test chamber / damp heat test machine / high/low temperature damp heat chamber
Application
This series is suitable for aerospace products, information and electronic instruments, materials, electrical and electronic products and various electronic components, to test their performance indicators under high/low temperature or damp heat environments.
Chamber Structure
- Overall forming: the chamber body is CNC-machined with an attractive, generous appearance, and uses non-reactive handles for easy operation.
- Inner chamber material: the inner chamber is made of imported high-grade stainless steel (SUS304) mirror plate; the outer shell is A3 steel plate with powder coating, enhancing the appearance and cleanliness.
- Water replenishment tank: placed at the lower right of the control cabinet, with automatic water-shortage protection, making it more convenient for the operator to replenish the water supply.
- Observation window: a large observation window with lighting keeps the chamber interior bright, and laminated tempered glass with embedded heating elements allows clear observation of the chamber interior at any time.
- Humidification system: the humidification system piping is separated from the control circuit board, avoiding failures caused by humidification pipe leakage and improving safety.
- Water system: the piping and electrical systems open with hinged doors for easy maintenance and inspection.
- Sealing structure: double-layer high-temperature-resistant high-tensile sealing strips between the door and the chamber ensure a tightly sealed test area.
- Test port: a Ø30mm, 50mm or 100mm test port on the left side of the chamber for external test power supply or signal cables (specify when ordering if a larger diameter or more ports are required).
- Casters: the machine bottom uses high-quality lockable PU casters.
Control System
- Controller: Japanese imported digital touch-key PID microcomputer SSR temperature controller.
- Humidifier: external boiler steam humidifier with energy-saving function, saving 70% energy consumption.
- Main electrical components: imported famous brand “Schneider” components are used for better temperature control.
- Insulation system: the insulation zone is filled with ultra-fine glass fiber wool; non-metallic high/low-temperature-resistant material is used at the connection between the inner and outer shells to effectively reduce heat conduction.
- Auto-tuning: the auto-tuning function instantly corrects temperature and humidity change conditions, making control more precise and stable.
Refrigeration System
- Compressor: the refrigerator uses original French “Tecumseh” fully hermetic compressors.
- Circuit design: the refrigeration system adopts a single-unit or binary low-temperature circuit design.
- Key components: US “ALCO” filter drier, Taiwan “Guanya” oil separator, Italy “Castel” solenoid valve.
- Air circulation: multi-blade blower provides strong circulation, avoiding any dead zone and ensuring uniform temperature and humidity distribution in the test area.
- Air path design: supply and return air path design meets test standards for air pressure and velocity, with fast temperature/humidity recovery when the door is opened.
- Independent systems: heating, cooling and humidification systems are fully independent, improving efficiency, reducing test cost, extending service life and lowering the failure rate.
Standards
- GB/T 2423.1-2001
- GB/T 2423.2-2001
- GB/T 2423.3-1993
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | GDS-100 | GDS-225 | GDS-500 | GDS-800 | GDS-010 | |
| Working chamber size D×W×H (mm) | 450×450×500 | 500×600×750 | 800×700×900 | 800×1000×1000 | 1000×1000×1000 | |
| External size D×W×H (mm) | 1150×1050×1750 | 1200×1100×1900 | 1450×1400×2150 | 1500×1550×2200 | 1720×1580×2280 | |
| Power (KW) | 4.5/5.5/5.5/7.0 | 5.0/6.5/6.5/8.0 | 7.5/8.5/8.5/10 | 9.0/11/13/14.5 | 11/12/13/14.5 | |
| Performance | Temperature range | A: -20°C~150°C; B: -40°C~150°C; C: -60°C~130°C; D: -80°C~150°C | ||||
| Humidity range | 30~98%RH | |||||
| Fluctuation / uniformity | ±0.5°C / ±2°C | |||||
| Humidity deviation | +2 / -3%RH | |||||
| Heat-up time | 1~3°C/min | |||||
| Cool-down time | 0.7~1°C/min | |||||
| Temp. & humidity control system | Controller | Japanese imported microcomputer integrated controller | ||||
| Accuracy range | Setting accuracy: temperature 0.1°C, humidity 1%RH; indication accuracy: temperature 0.1°C, humidity 1%RH | |||||
| Temp. & humidity sensors | Platinum resistance PT100Ω/MV | |||||
| Heating system | Fully independent system, nickel-chromium alloy electric heaters | |||||
| Humidification system | External isolated all-stainless-steel shallow-surface evaporative humidifier | |||||
| Dehumidification system | Evaporator-coil dew-point temperature laminar-flow contact dehumidification | |||||
| Water supply system | Humidification water supply automatically controlled, with waste water recovery for water and energy saving | |||||
| Refrigeration system | Fully hermetic air-cooled single-stage compression / original French “Tecumseh” / fully hermetic air-cooled cascade compression | |||||
| Circulation system | Temperature-resistant low-noise HVAC-type motor, multi-blade centrifugal blower | |||||
| Materials | Outer chamber | High-quality carbon steel plate, phosphated and powder coated / SUS304 stainless steel matte hairline finish | ||||
| Inner chamber | SUS304 stainless steel high-quality mirror plate | |||||
| Insulation | Rigid polyurethane foam / ultra-fine glass fiber wool | |||||
| Door frame insulation | Double-layer high/low-temperature aging-resistant silicone rubber door seal | |||||
| Standard accessories | 1 set of multi-layer anti-frost illuminated glass viewing window, 2 specimen shelves, 1 test lead port (25, 50mm) | |||||
| Safety protection | Earth leakage, short circuit, over-temperature, water shortage, motor overheat, compressor over-pressure, overload and over-current protection | |||||
| Power supply voltage | AC380V ±10%, 50±0.5Hz, three-phase five-wire | |||||
| Operating ambient temperature | 5°C~+30°C, ≤85%RH | |||||
| Note: 1. “GDS” is the model code of the high/low temperature damp heat test chamber. 2. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. 3. Non-standard high/low temperature damp heat test rooms can be made according to the customer's specific requirements. Specifications are subject to change without notice. |
||||||
