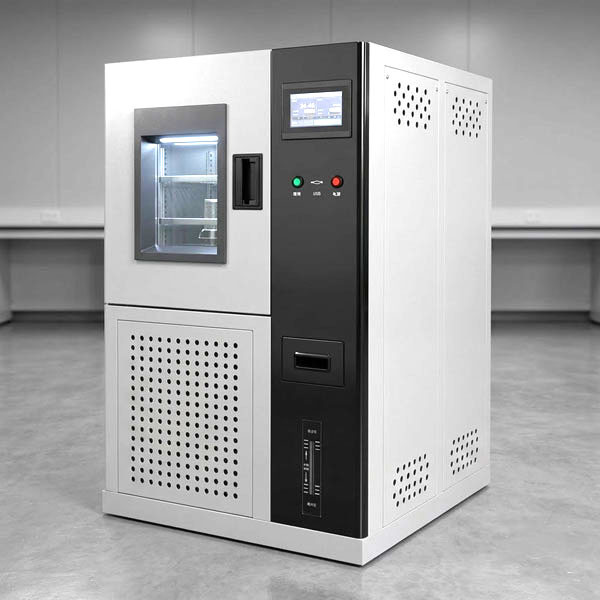

Programmable Constant Temperature and Humidity Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Programmable constant temperature and humidity test chamber / low-temperature constant damp heat chamber / constant temperature and humidity test machine
Chamber Structure
- Overall forming: the chamber body is CNC-machined with an attractive, generous and novel appearance, and uses non-reactive handles for easy operation.
- Inner chamber material: the inner chamber is made of imported high-grade stainless steel (SUS304) mirror plate or 304B argon-arc welded construction; the outer shell is A3 steel plate with powder coating.
- Control mode: a microcomputer temperature and humidity controller is used, giving precise and reliable temperature and humidity control.
- Observation window: a large observation window with lighting keeps the chamber interior bright, and double-layer glass allows clear observation of the chamber interior at any time.
- Over-temperature alarm: an independent over-temperature alarm system automatically interrupts when the limit temperature is exceeded, ensuring safe experimental operation without accidents.
- Test port: a Ø50mm test port on the left side of the chamber.
Control System
- Controller: Japanese imported digital touch-key PID microcomputer SSR temperature controller.
- Humidifier: external boiler steam humidifier with energy-saving function, saving 70% energy consumption.
- Main electrical components: imported famous brand “Schneider” components are used for better temperature control.
- Insulation system: the insulation zone is filled with ultra-fine glass fiber wool; non-metallic high/low-temperature-resistant material is used at the connection between the inner and outer shells to effectively reduce heat conduction.
- Auto-tuning: the auto-tuning function instantly corrects temperature and humidity change conditions, making control more precise and stable.
Refrigeration System
- Compressor: the refrigerator uses original French “Tecumseh” fully hermetic compressors.
- Circuit design: the refrigeration system adopts a single-unit or binary low-temperature circuit design.
- Key components: US “ALCO” filter drier, Taiwan “Guanya” oil separator, Italy “Castel” solenoid valve.
- Air circulation: multi-blade blower provides strong circulation, avoiding any dead zone and ensuring uniform temperature and humidity distribution in the test area.
- Air path design: supply and return air path design meets test standards for air pressure and velocity, with fast temperature/humidity recovery when the door is opened.
- Independent systems: heating, cooling and humidification systems are fully independent, improving efficiency, reducing test cost, extending service life and lowering the failure rate.
Standards
- GB/T 2423.1-2001
- GB/T 2423.2-2001
- GB/T 2423.3-1993
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | DHS-100 | DHS-225 | DHS-500 | DHS-800 | DHS-010 | |
| Working chamber size D×W×H (mm) | 450×450×500 | 500×600×750 | 800×700×900 | 800×1000×1000 | 1000×1000×1000 | |
| External size D×W×H (mm) | 1150×1050×1750 | 1200×1100×1900 | 1450×1400×2150 | 1500×1550×2200 | 1720×1580×2280 | |
| Power (KW) | 3.8 | 4.5 | 5.3 | 6.9 | 7.5 | |
| Performance | Temperature range | 0°C~150°C | ||||
| Humidity range | 30~98%RH | |||||
| Fluctuation / uniformity | ±0.5°C / ±2°C | |||||
| Humidity deviation | +2 / -3%RH | |||||
| Heat-up time | 1°C~3°C per 35 min | |||||
| Cool-down time | 0.7°C~1°C per 40 min | |||||
| Temp. & humidity control system | Controller | Imported microcomputer temp. & humidity integrated controller | ||||
| Accuracy range | Setting accuracy: temperature 0.1°C, humidity 1%RH; indication accuracy: temperature 0.1°C, humidity 1%RH | |||||
| Temp. & humidity sensors | Platinum resistance PT100Ω/MV | |||||
| Heating system | Fully independent system, nickel-chromium alloy electric heaters | |||||
| Humidification system | External isolated all-stainless-steel shallow-surface evaporative humidifier | |||||
| Dehumidification system | Evaporator-coil dew-point temperature laminar-flow contact dehumidification | |||||
| Water supply system | Humidification water supply automatically controlled, with waste water recovery for water and energy saving | |||||
| Refrigeration system | Fully hermetic air-cooled single-stage compression / original French “Tecumseh” / fully hermetic air-cooled cascade compression | |||||
| Circulation system | Temperature-resistant low-noise HVAC-type motor, multi-blade centrifugal blower | |||||
| Materials | Outer chamber | High-quality carbon steel plate, phosphated and powder coated / SUS304 stainless steel matte hairline finish | ||||
| Inner chamber | SUS304 stainless steel high-quality mirror plate | |||||
| Insulation | Rigid polyurethane foam / ultra-fine glass fiber wool | |||||
| Door frame insulation | Double-layer high/low-temperature aging-resistant silicone rubber door seal | |||||
| Standard accessories | 1 set of illuminated glass viewing window, 2 specimen shelves, 1 test lead port (25, 50, 100mm) | |||||
| Safety protection | Earth leakage, short circuit, over-temperature, water shortage, motor overheat, compressor over-pressure, overload and over-current protection | |||||
| Power supply voltage | AC380V ±10%, 50±0.5Hz, three-phase five-wire | |||||
| Operating ambient temperature | 5°C~+30°C, ≤85%RH | |||||
| Note: 1. “DHS” is the model code of the low-temperature constant temperature and humidity test chamber. 2. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. 3. Non-standard low-temperature constant temperature and humidity test rooms can be made according to the customer's specific requirements. Specifications are subject to change without notice. |
||||||
