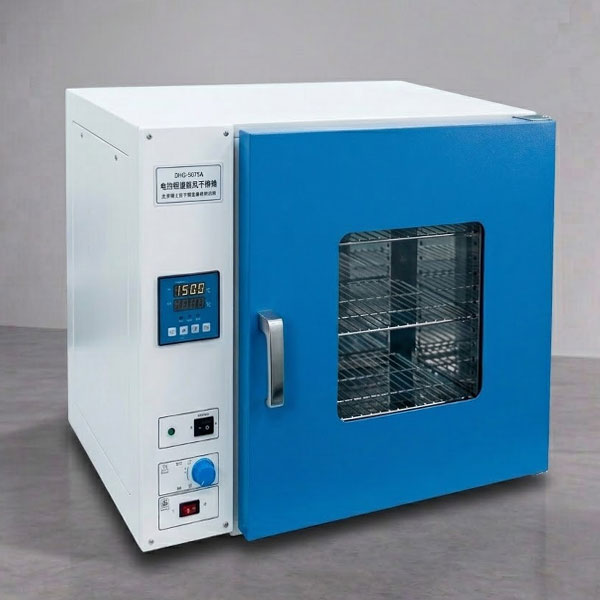

Electric Constant Temperature Blown-Air Drying Oven
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Electric constant temperature blown-air drying oven / drying oven / constant temperature chamber / drying box / high-temperature sterilization chamber
Application
The electric constant temperature blown-air drying oven is suitable for industrial and mining enterprises, schools, and medical and research institutions for drying, baking and sterilizing non-volatile items.
Chamber Structure
- Inner chamber material: the inner chamber is argon-arc welded from stainless steel mirror plate (or hairline plate); the outer shell is high-quality steel plate with powder coating, with an attractive and novel appearance.
- Hot air circulation: the hot air circulation system consists of a fan that can run continuously at high temperature and a special air duct, giving a uniform working-chamber temperature.
- Over-temperature alarm: an independent over-temperature alarm system automatically interrupts when the limit temperature is exceeded, ensuring safe experimental operation without accidents.
- Observation window: a large-area tempered glass observation window for observing the condition of the working chamber.
Control System
The electric constant temperature blown-air drying oven uses an intelligent temperature controller with timer function and fast temperature recovery time.
Standards
- JB/T 5520-91
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | DHG-9023A DHG-9035A |
DHG-9053A DHG-9055A |
DHG-9070A DHG-9075A |
DHG-9140A DHG-9145A |
DHG-9240A DHG-9245A |
|
| Working chamber size D×W×H (mm) | 340×320×320 | 420×395×350 | 450×400×450 | 550×450×550 | 600×500×750 | |
| External size D×W×H (mm) | 620×540×490 620×530×490 |
700×610×520 720×590×520 |
740×618×630 740×618×630 |
840×670×730 840×670×730 |
880×720×930 800×720×930 |
|
| Power (W) | 870/870 | 1120/1120 | 1570/1550 | 2070/2050 | 2700/2450 | |
| Performance | Temperature range | RT+10°C~250°C, 300°C | ||||
| Control accuracy | ±1% (full scale) | |||||
| Constant temperature fluctuation | ±1°C | |||||
| Temperature resolution | 0.1°C | |||||
| Control system | Controller | LED digital P·I·D + S·S·R microcomputer integrated controller | ||||
| Heating system | Fully independent system, nickel-chromium alloy electric heaters | |||||
| Timer range | 1~9999 min | |||||
| Circulation system | High-temperature-resistant low-noise motor, multi-blade centrifugal blower | |||||
| Safety protection | Earth leakage, short circuit, over-temperature, motor overheat and over-current protection | |||||
| Air inlet/outlet volume function | Manually adjustable knob | |||||
| Power supply voltage | AC220V 50Hz | |||||
| Shelves (pcs) | 2 standard (additional shelves can be specified before ordering) | |||||
| Note: 1. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. 2. An intelligent program temperature controller is available as an option. |
||||||
