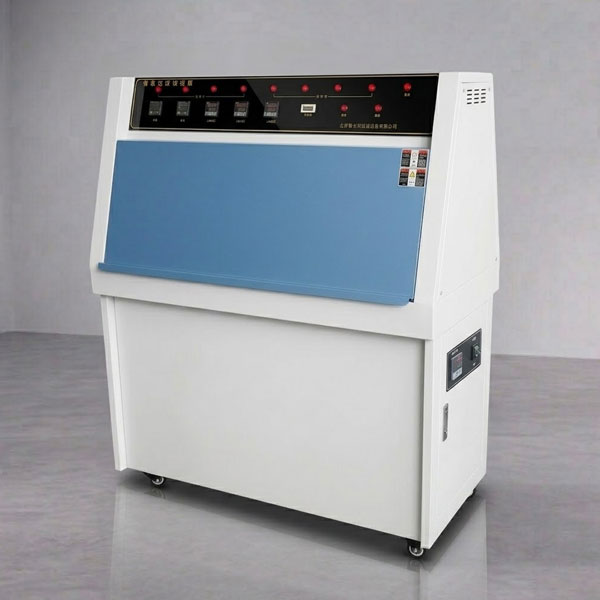

UV Accelerated Weathering Tester
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
UV aging test chamber / UV weathering test chamber / UV aging chamber
Application
The UV aging test chamber is suitable for weathering tests of non-metallic materials under sunlight and artificial light sources.
Chamber Structure
- Forming: the chamber body is CNC-machined with an attractive, generous appearance; the lid is a double-hinged flip-top for easy operation.
- Chamber materials: the inner chamber is made of imported high-grade stainless steel plate; the outer shell is A3 steel plate with powder coating, enhancing the appearance and cleanliness.
- Heating method: inner water-jacket heating, with fast heat-up and uniform temperature distribution.
- Drainage system: the drainage system uses vortex-return and U-type sediment-trap drainage, convenient for user cleaning.
Control System
- Temperature control: a black aluminum plate carries the temperature sensor; heating is controlled by the black panel temperature instrument, giving a more stable temperature.
- Radiometer probe: the radiometer probe is fixed-type, requiring no installation/removal each time.
- Radiometer: the irradiance of the UV aging chamber is displayed and measured by a high-precision dedicated UV radiometer.
- Irradiance: irradiance is not more than 50 W/m².
- Control mode: light exposure and condensation can be controlled independently or in alternating cycles.
- Time settings: the independent control times and alternating cycle times of light exposure and condensation can be freely set within 1,000 hours.
Standards
GB/T 14522-93, GB/T 16422.3-1997, GB/T 16585-96; ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN 534; PREN 1062-4, BS 2782; JIS D0205; SAE J2020
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | ZN-P | ||
| Working chamber size D×W×H (mm) | 450×1170×500 | Specimen capacity: approx. 40 pcs of 150×75 | |
| External size D×W×H (mm) | 580×1280×1350 | ||
| Power (kW) | 4KW | ||
| Performance | Temperature range | RT+10°C~70°C | |
| Humidity range | ≥95%RH | ||
| Distance between lamps | 35mm | ||
| Specimen-to-lamp distance | 50mm | ||
| UV wavelength | 290 nm~400 nm UV-A, UV-B, UV-C (specify when ordering) | ||
| Lamp power | 40W | ||
| Temp. & humidity control system | Temperature controller | Imported LED digital P·I·D + S·S·R microcomputer integrated controller | |
| Time controller | Imported programmable time microcomputer integrated controller | ||
| Lighting heating system | Fully independent system, nickel-chromium alloy electric heaters | ||
| Condensation humidification system | All-stainless-steel shallow-surface evaporative humidifier | ||
| Black panel temperature | Bimetallic black panel thermometer | ||
| Water supply system | Humidification water supply automatically controlled | ||
| Exposure mode | Moisture condensation exposure, light radiation exposure | ||
| Safety protection | Earth leakage, short circuit, over-temperature, water shortage and over-current protection | ||
