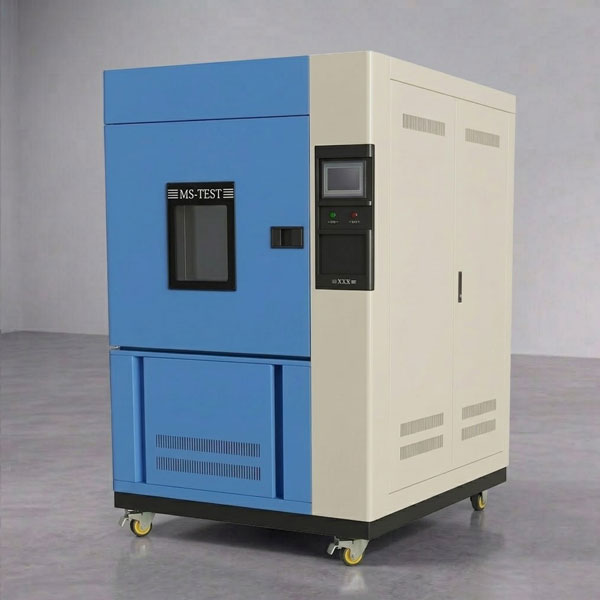

Air-Cooled Xenon Arc Weathering Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Air-cooled xenon arc weathering test chamber / xenon test chamber / xenon arc aging test chamber
Application
The air-cooled xenon arc weathering test chamber uses a xenon arc lamp that simulates the full sunlight spectrum to reproduce the destructive light waves present in different environments, providing corresponding environmental simulation and accelerated testing for scientific research, product development and quality control. The SN-type xenon test chamber can be used for selecting new materials, improving existing materials or evaluating durability changes after material composition changes, and well simulates the changes produced when materials are exposed to sunlight under different environmental conditions.
Chamber Structure
- Outer shell: the outer shell is CNC-machined from high-quality A3 steel plate with a powder-coated surface for a smoother, more attractive appearance (now upgraded to rounded corners). The inner shell is imported high-quality SUS304 stainless steel plate.
- Insulation: high-density glass fiber wool, insulation thickness 80mm.
- Circulation fan: long-shaft fan motor with temperature-resistant stainless steel multi-blade impeller for strong convective vertical diffusion circulation.
- Sealing: double-layer high-temperature-resistant high-tensile sealing strips between the door and the chamber ensure a tightly sealed test area.
- Door handle: non-reactive door handle for easier operation.
- Bottom: high-quality lockable PU casters.
- Observation window: multi-layer hollow tempered glass window allowing clear observation of the test process.
Functions
- Light source: full-spectrum xenon lamp.
- Filter system: multiple selectable filter systems.
- Spray: water spray function.
- Humidity: relative humidity control.
- Temperature: chamber air temperature control system.
- Specimen rack: fixing rack for irregularly shaped specimens.
- Lamp: cost-effective xenon arc lamp tube.
- Maintenance: easy installation, convenient use and essentially no routine maintenance required.
- Lamp life: the service life of the xenon arc lamp depends on the irradiance level used; generally the lamp life is 1,600 hours. Lamp replacement is quick and convenient; long-life filters ensure the required spectrum.
Refrigeration System
- Compressor: the refrigerator uses original French “Tecumseh” fully hermetic compressors.
- Refrigeration circuit: single-unit or binary low-temperature circuit system design.
- Auxiliary components: US “ALCO” filter drier, Taiwan “Guanya” oil separator, Italy “Castel” solenoid valve.
- Air circulation: multi-blade blower provides strong circulation, avoiding any dead zone and ensuring uniform temperature and humidity distribution in the test area.
- Air path design: supply and return air path design meets test standards for air pressure and velocity, with fast temperature/humidity recovery when the door is opened.
- Independent systems: heating, cooling and humidification systems are fully independent, improving efficiency, reducing test cost, extending service life and lowering the failure rate.
Standards
This product is designed and manufactured strictly according to the technical parameters of GB/T 16422.2-99, and also complies with GB/T 1865-97, GB/T 9344-88, ASTM G155, GB/T 16422.2, GB/T 2423.24-1995, ISO 10SB02/B04, SAE J2527, SAE J2412 and other related standards.
Standard configuration: 1 set of radiation-shielded glass viewing window, 4 xenon lamp tubes
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | SN-500 | |
| Working size D×W×H (mm) | 500×760×500 | |
| External size D×W×H (mm) | 1220×1200×1650 | |
| Power (kW) | 10.5 kW | |
| Performance | Temperature range | RT+10°C~70°C |
| Humidity range | 65~98%RH | |
| Rain duration | Adjustable 1~9999 h 59 min | |
| Rain cycle | 1~240 min, adjustable interval (off) | |
| Spectral wavelength | 290 nm~800 nm | |
| Total xenon lamp power | 9.9 kW (lamp life: 1,600 hours) | |
| Temp. & humidity control system | ||
| Accuracy range | Setting/indication accuracy: temperature 0.1°C, humidity 1%RH | |
| Temp. & humidity sensor | Platinum resistance PT100Ω/MV | |
| Heating system | Fully independent system, nickel-chromium alloy electric heaters | |
| Humidification system | Externally isolated, all-stainless-steel shallow-surface evaporative humidifier | |
| Black panel temperature | Bimetallic black panel thermometer | |
| Temperature controller | Imported Weinview color touch screen with Siemens PLC module control | |
| Circulation system | Temperature-resistant low-noise motor, multi-blade centrifugal blower | |
| Materials | Outer chamber | High-quality carbon steel plate, phosphated and electrostatic powder coated / SUS304 stainless steel, hairline finish |
| Inner chamber | SUS304 high-quality stainless steel mirror plate | |
| Specimen rack | SUS304 high-quality stainless steel bars | |
| Door frame insulation | High/low-temperature aging-resistant silicone rubber door seal | |
| Standard configuration | 1 set of radiation-shielded glass viewing window, 4 xenon lamp tubes | |
| Safety protection | Earth leakage, short circuit, over-temperature, water shortage, motor overheat and over-current protection | |
| Power supply | AC380V ±10%, 50±0.5Hz, three-phase five-wire | |
| Ambient operating temperature | 5°C~+30°C, ≤85%RH | |
| Specifications are subject to change without notice. | ||
