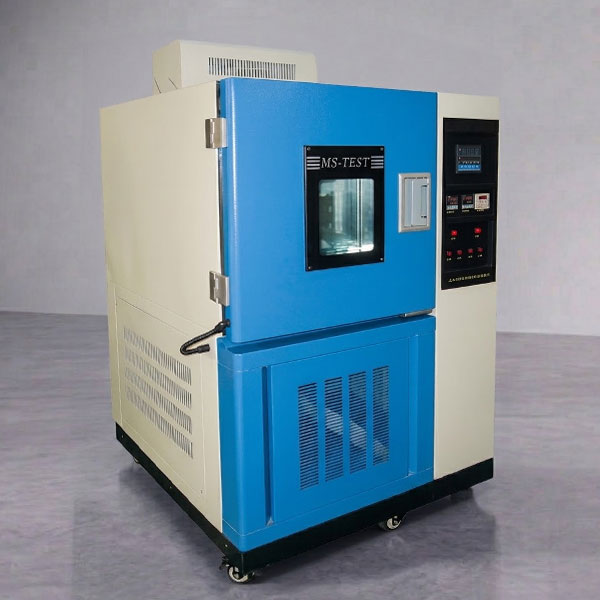

Air Ventilation Aging Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Air ventilation aging test chamber / temperature aging tester / air-exchange aging chamber
Application
This series is suitable for heat-resistance tests of electrical insulating materials and air-exchange aging tests of electronic parts and plastic products.
Chamber Structure
- Forming and handles: the chamber body of the air ventilation aging test chamber is CNC-machined with an attractive, generous and novel appearance, and uses non-reactive handles for easy operation.
- Chamber materials: the inner chamber is made of imported high-grade stainless steel (SUS304) plate or 304B argon-arc welded construction; the outer shell is A3 steel plate with powder coating, enhancing the appearance and cleanliness.
- Controller: the chamber uses an intelligent program microcomputer controller with temperature-control protection and timer function, giving precise and reliable temperature control.
- Observation window: a large observation window with lighting keeps the chamber interior bright, and tempered glass allows clear observation of the chamber interior at any time.
- Hot air circulation: the hot air circulation system consists of a fan that can run continuously at high temperature and a special air duct, giving a uniform working-chamber temperature.
- Turntable: the aging chamber is equipped with a low-speed turntable.
- Insulation: the chamber uses ultra-fine glass fiber insulation cotton to avoid unnecessary energy loss.
- Test port: a Ø50mm test port on the left side of the chamber for external test power supply or signal cables.
- Ventilation settings: ventilation time and frequency can be freely set.
Standards
JB 7444-94, GB/T 3512-01
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | QLH-100 | QLH-225 | QLH-500 | QLH-800 | QLH-010 | |
| Working chamber size D×W×H (mm) | 450×450×500 | 500×600×750 | 800×700×900 | 800×1000×1000 | 1000×1000×1000 | |
| External size D×W×H (mm) | 1050×870×1550 | 1100×920×1800 | 1400×1120×1950 | 1400×1420×2050 | 1600×1420×2050 | |
| Power | 3kW | 4.5kW | 5.5kW | 6.5kW | 6.5kW | |
| Performance | Temperature range | RT+10°C~200°C, 250°C, 300°C | ||||
| Uniformity | ±2°C | |||||
| Constant temperature fluctuation | ±0.5°C | |||||
| Ventilation time | Adjustable 1 min~99 h | |||||
| Air exchange rate | 2~100 times/h | |||||
| Temperature control system | Controller | Imported LED digital P·I·D + S·S·R microcomputer integrated controller | ||||
| Accuracy range | Setting accuracy: temperature 0.1°C; indication accuracy: temperature 0.1°C; resolution: 0.1°C | |||||
| Timer range | 1~9999 min | |||||
| Circulation system | High-temperature-resistant low-noise motor, multi-blade centrifugal blower | |||||
| Turntable diameter | φ250mm | φ350mm | φ500mm | φ600mm | φ800mm | |
| Safety protection | Earth leakage, short circuit, over-temperature, motor overheat and over-current protection | |||||
| Note: 1. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. 2. An intelligent program temperature controller is available as an option. Specifications are subject to change without notice. |
||||||
