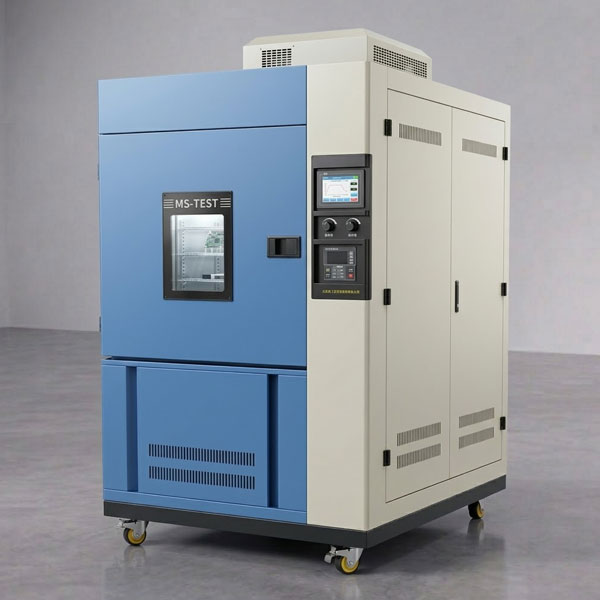

Ozone Aging Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Ozone aging test chamber / ozone corrosion test chamber / ozone test chamber
Application
The ozone aging test chamber / ozone corrosion test chamber is suitable for aging and cracking tests of non-metallic materials and rubber products.
Chamber Structure
- Forming and handles: the chamber body is CNC-machined with an attractive, generous appearance, non-reactive door handles and easy operation.
- Inner chamber: imported high-quality mirror-finish stainless steel plate.
- Insulation: high-density glass fiber wool.
- Agitation system: the ozone aging test chamber uses a long-shaft fan motor with temperature-resistant stainless steel multi-blade impellers to achieve strong convective vertical diffusion circulation. Double-layer high-temperature-resistant high-tensile sealing strips between the door and the chamber ensure a tightly sealed test area.
- Bottom: the machine bottom uses high-quality lockable PU casters.
- Observation window: multi-layer hollow tempered glass with an inner laminated conductive film.
- Specimen rack: built-in 360-degree rotating specimen rack (rotation speed 1 rpm).
Control System
- Controller: imported Weinview color touch screen with Siemens PLC module control.
- Accuracy: 0.1°C (display range).
- Temperature sensor: PT100 platinum resistance sensor.
- Control mode: balanced temperature control.
- Temperature control: P·I·D system same-channel coordinated control.
- Auto-tuning: the ozone aging test chamber has an auto-tuning function, reducing the inconvenience caused by manual setting.
- Ozone concentration control: large LCD display, imported Siemens PLC programmable module and PLC analog expansion module.
- Display: 4.3-inch STN LCD.
- Resolution: display resolution 192×64 pixels (supports 4 lines × 12 characters).
- Connector: equipped with imported Siemens shielded communication cable.
Refrigeration System
- Compressor: the refrigerator uses original French “Tecumseh” fully hermetic compressors.
- Refrigeration circuit: the refrigeration system adopts a single-unit or binary low-temperature circuit design.
- Auxiliary components: US “ALCO” filter drier, Taiwan “Guanya” oil separator, Italy “Castel” solenoid valve.
- Air circulation: multi-blade blower provides strong circulation, avoiding any dead zone and ensuring uniform temperature and humidity distribution in the test area.
- Air path design: supply and return air path design meets test standards for air pressure and velocity, with fast temperature/humidity recovery when the door is opened.
- Independent systems: heating, cooling and humidification systems are fully independent, improving efficiency, reducing test cost, extending service life and lowering the failure rate.
Standards
GB/T 7762-2003
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | QL-100 | QL-250 | QL-500 | QL-010 | |
| Working chamber size D×W×H (mm) | 450×450×500 | 500×600×750 | 700×800×900 | 1000×1000×1000 | |
| External size D×W×H (mm) | 1050×870×1670 | 1100×1020×1920 | 1400×1120×2070 | 1600×1420×2170 | |
| Power | 3KW | 3.5KW | 4.5KW | 6.5KW | |
| Performance | Temperature range | 25°C~40°C | |||
| Humidity range | 30%~65%RH | ||||
| Ozone concentration | 50~1500 pphm | ||||
| Temperature fluctuation | ±0.5°C | ||||
| Operating control system | Test mode | Dynamic, static (optional) | |||
| Specimen rack speed | 360-degree rotating specimen rack (rotation speed 1 rpm) | ||||
| Gas flow velocity | 8~16 mm/s | ||||
| Temperature controller | Imported Weinview color touch screen with Siemens PLC module control | ||||
| Time controller | High-precision hour/minute/second time controller | ||||
| Ozone concentration analysis | Imported concentration analysis and control instrument, 4~20 mA output, RS232 communication port | ||||
| Ozone generator | |||||
