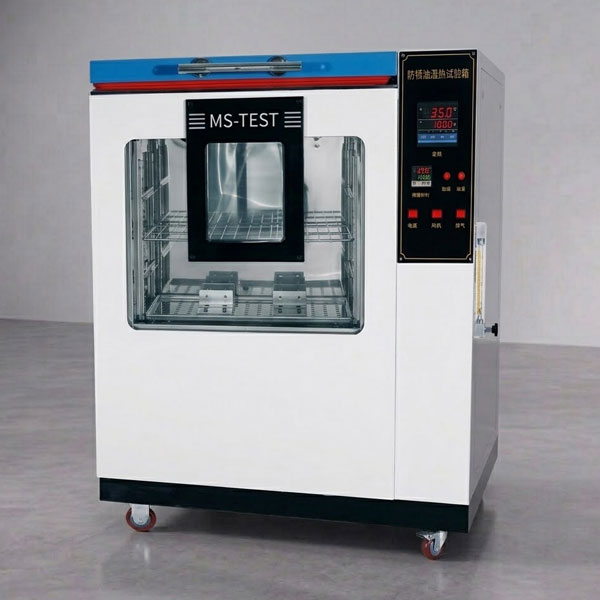

Anti-Rust Grease Damp Heat Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Anti-rust damp heat test chamber / anti-rust grease damp heat test chamber / anti-rust grease test chamber
Application
The anti-rust damp heat test chamber is a test equipment that simulates a humid environment. It is used by laboratories in the petroleum, chemical and other industries, as well as universities and research institutes, to test and evaluate the anti-rust performance of greases on metals.
Chamber Structure
- Forming and door: the chamber has a refined design, the body is CNC-machined, and the door opens upward for easy operation.
- Chamber materials: the inner chamber uses SUS304 stainless steel plate; the outer shell is A3 steel plate with powder coating, smooth and attractive.
- Maintenance structure: the water system and electrical system sides open with hinged doors for easy maintenance and inspection.
- Insulation system: the insulation zone is filled with ultra-fine glass fiber wool; non-metallic high/low-temperature-resistant material is used at the connection between the inner and outer shells to effectively reduce heat conduction; the door seal uses refined silicone rubber, which will not age or harden under high or low temperature, making the sealing more reliable; the water supply method is automatic on water shortage.
Control System
- Controller: digital touch-key temperature and humidity controller of the anti-rust grease damp heat test chamber, high-precision PID control, eliminating instability during long-term operation.
- Temperature sensor: platinum resistance PT100Ω/MV.
Protection System
The whole-machine protection system consists of phase-loss, water-shortage and over-temperature protection with alarm devices, ensuring the safety of the actuating components and the specimens.
Standards
GB/T 2361-92 Test methods for damp heat test of anti-rust greases.
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | HUS-100 | HUS-250 | HUS-400 |
| Working size D×W×H (mm) | 450×450×550 | 580×580×680 | 680×680×800 |
| External size D×W×H (mm) | 690×640×1270 | 820×770×1400 | 920×870×1520 |
| Power (kW) | 2.5KW | 3.5KW | 4.5KW |
| Temperature range | RT+5°C~65°C | ||
| Temperature uniformity | ±2.0°C | ||
| Temperature fluctuation | ±0.5°C | ||
| Humidity range | ≥95%RH | ||
| Specimen rack rotation speed | 1~3 r/min ±10% | ||
| Air intake rate | 0.5 m³/h (adjustable within 0.1~1 m³/h) | ||
| Bottom water depth | 200mm | ||
| Heat-up and stabilization time | ≤60 min | ||
| Safety devices | Phase-loss, water-shortage and over-temperature protection | ||
