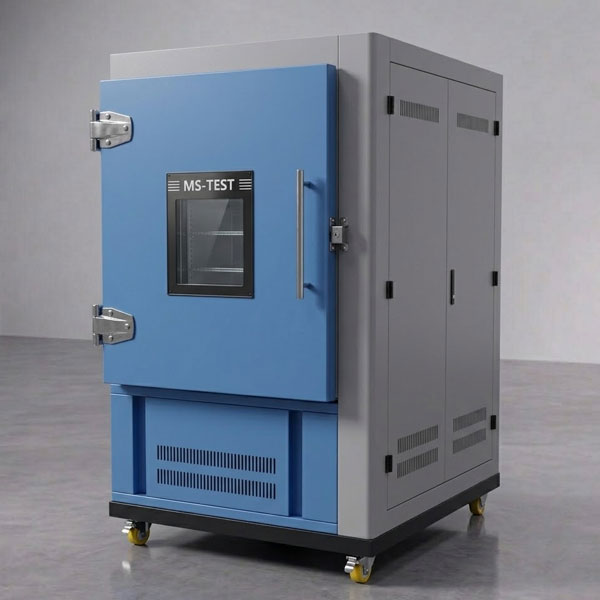

Sand and Dust Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Sand and dust test chamber / dust test chamber / dust-proof chamber
Application
This product is suitable for dust-proof and dust-resistance tests of various automotive parts. Components tested include vehicle lamps, instruments, electrical dust boots, steering systems, door locks, etc.
Chamber Structure
- Outer shell material: high-quality steel plate with powder coating.
- Inner chamber material: imported SUS stainless steel mirror plate.
- Visible door: glass door of the sand and dust test chamber, convenient for observing the condition of the specimen under test inside the chamber.
- Casters: the chamber bottom uses high-quality lockable PU casters.
- Dust device: the chamber bottom is equipped with a dust replacement device.
Control System
- Controller: the sand and dust test chamber uses an imported programmable controller, effectively ensuring the test runs according to the standard.
- Actuating components: equipped with vacuum actuating components; power-failure record retention for 10 years. “Schneider” actuating components.
- Dust blowing fan: the dust blowing fan time automatically alternates.
- Vibration control: vibration and vibration-stop times automatically alternate.
- Vacuum pressure: vacuum pressure indicated and adjustable.
- Output points: the programmable controller has four output points simultaneously executing four different time programs.
- Time-period control: each output point of the programmable controller has two time periods (i.e. start time and stop time).
- Time control: the programmable controller can separately or jointly control the time of the dust blowing fan, dust vibration and the total test time. Maximum test time is 99 hours 59 minutes.
- Wind speed adjustment: wind speed inside the chamber is adjustable (automatically adjusted by inverter).
Standards
GB 4208, GB/T 2423.37-1989
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | SC-500 | SC-800 | SC-010 | SC-015 | ||
| Working size D×W×H (mm) | 800×800×800 | 800×1000×1000 | 1000×1000×1000 | 1000×1500×1000 | ||
| External size D×W×H (mm) | 1030×920×1660 | 1030×1120×1860 | 1230×1120×1860 | 1230×1620×1860 | ||
| Power (kW) | 2.5KW | 2.5KW | 2.5KW | 2.5KW | ||
| Performance | Metal mesh wire diameter | 50 μm | ||||
| Nominal wire spacing | 75 μm | |||||
| Talc powder quantity | 2kg~4kg/m³ | |||||
| Vibration (agitation) time | 0~99 h 59 min | |||||
| Fan circulation time | 0~99 h 59 min | |||||
| Specimen power socket | Dust-proof socket AC220V 16A | |||||
| Control system | Controller | Imported microcomputer programmable integrated controller | ||||
| Vacuum system | Equipped with pressure gauge, air filter, pressure-regulating three-piece unit and connecting tubes (vacuum pump supplied separately; specify when ordering) | |||||
| Circulation fan | Sealed alloy low-noise motor, multi-blade centrifugal fan | |||||
| Dust heating system | Stainless steel mica heating band | |||||
| Safety protection | Earth leakage, short circuit, over-temperature, motor overheat and over-current protection | |||||
| Note: 1. “SC” is the model code of the sand and dust test chamber. 2. This test chamber meets the enclosure protection (IP rating) test requirements of GB 2423, GB 4706, GB 4208 and DIN for household appliances, low-voltage electrical apparatus, automotive and motorcycle components. Specifications are subject to change without notice. |
||||||
