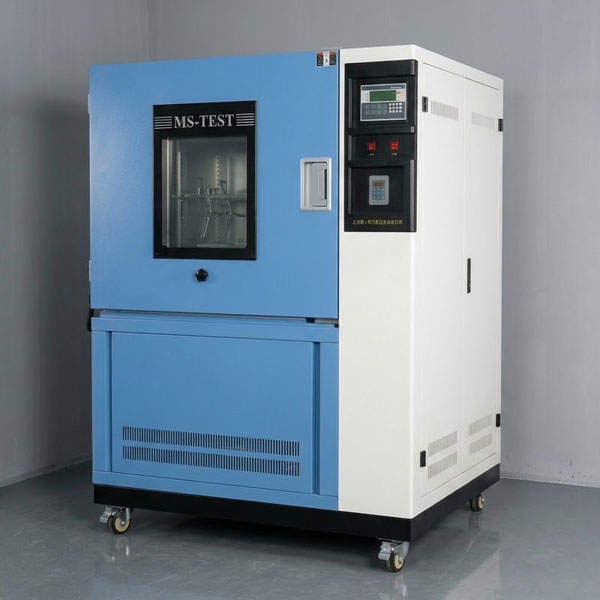

Rain and Waterproof Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Cabinet-type rain test chamber / waterproof test chamber / enclosure protection rain test chamber
Application
The cabinet-type rain test chamber is suitable for protection testing of external lighting and signal devices and automotive lamp housings.
Chamber Structure
- Chamber materials: the outer shell is made of high-quality stainless steel plate with hairline finish; the inner chamber is made of stainless steel mirror plate.
- Visible door: large-area glass door, convenient for observing the condition of the specimen under test inside the chamber.
- Casters: the chamber bottom uses high-quality lockable PU casters for easy moving by the user.
- Spray device: equipped with a 270-degree oscillating tube and a 360-degree rotating rod spray device.
- Specimen turntable: turntable with adjustable rotation speed.
Control System
- Controller: an imported programmable controller completes the time and sequence control of the whole system.
- Speed control: the rain waterproof test chamber uses an imported inverter (variable-frequency drive) to control the rotation speed, effectively ensuring the test runs according to the standard.
- Filter: equipped with a water filter.
Standards
GB 10485-89, GJB 150.8-86
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | LX-500 | LX-010 | |
| Working size D×W×H (mm) | 800×800×800 | 1020×1200×1000 | |
| External size D×W×H (mm) | 880×1180×1540 | 1200×1580×1760 | |
| Power | 2KW | 3.5KW | |
| Performance | Spray tube radius | 375 or 500mm | |
| Water tube diameter | φ16mm | ||
| Orifice diameter | φ0.4mm | ||
| Orifice spacing | 50mm | ||
| Oscillation angle | ±45°, ±60°, ±90°, ±180° (theoretical values) | ||
| Turntable speed | 1 r/min, or stepless speed regulation (optional) | ||
| Control system | Controller | Imported frequency-adjustable inverter | |
| Time controller | Imported programmable time microcomputer integrated controller | ||
| Water pressure control | Flow meter | ||
| Observation surface | Large-area visible tempered glass door | ||
| Water supply system | Water storage tank, booster pump | ||
| Safety protection | Earth leakage, short circuit and motor overheat protection | ||
| Specifications are subject to change without notice. | |||
