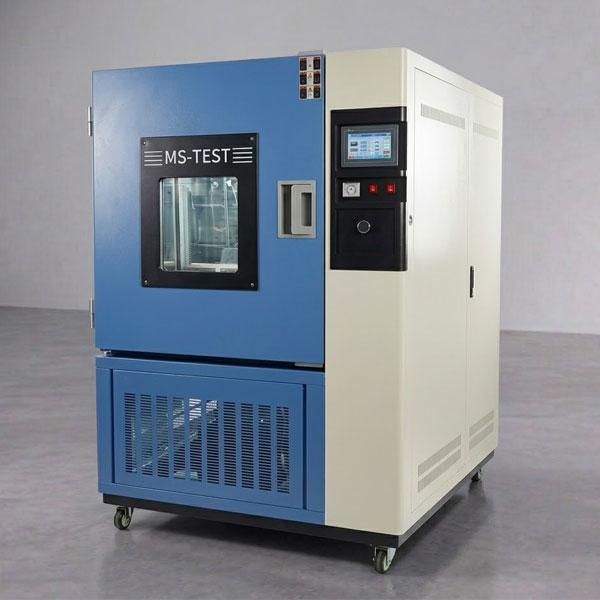

Mold Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Mold test chamber / mold chamber / mold cyclic test chamber
Application
The mold test chamber is suitable for universities, medicine, electronics, chemical industry and biological research departments for storing microbial strains and biological cultivation; it is essential equipment for research laboratories. This product tests the anti-mold aging capability of products by cultivating fungi under defined temperature and humidity conditions.
Chamber Structure
- Forming and handles: the chamber body is CNC-machined with an attractive, generous appearance, and uses non-reactive handles for easy operation.
- Chamber materials: the inner chamber is made of imported high-grade mirror-finish stainless steel (SUS304); the outer shell is A3 steel plate with powder coating, enhancing the appearance and cleanliness.
- Water replenishment tank: placed at the lower right of the control cabinet, with automatic water-shortage protection, making it more convenient for the operator to replenish the water supply.
- Observation window: a large observation window with lighting keeps the chamber interior bright, and laminated tempered glass with embedded heating elements allows clear observation of the chamber interior at any time.
- Humidification piping: the humidification system piping is separated from the control circuit board, avoiding failures caused by humidification pipe leakage and improving safety.
- Maintenance structure: the water and electrical systems open with hinged doors for easy maintenance and inspection.
- Insulation: the chamber uses ultra-fine fiber insulation cotton to avoid unnecessary energy loss.
- Test port: a Ø50mm test port on the left side of the chamber for external test power supply or signal cables.
Refrigeration System
- Compressor: the refrigerator uses original French “Tecumseh” fully hermetic compressors.
- Refrigeration circuit: the refrigeration system adopts a single-unit dehumidification system design.
- Air circulation: multi-blade blower provides strong circulation, avoiding any dead zone and ensuring uniform temperature and humidity distribution in the test area.
- Air path design: supply and return air path design meets test standards for air pressure and velocity, with fast temperature/humidity recovery when the door is opened.
- Independent systems: heating, cooling and humidification systems are fully independent, improving efficiency, reducing test cost, extending service life and lowering the failure rate.
Standards
GB/T 10588-2002
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | (J)MS-100 | (J)MS-225 | (J)MS-500 | (J)MS-010 | |
| Working size D×W×H (mm) | 450×450×500 | 500×600×750 | 700×800×900 | 1000×1000×1000 | |
| External size D×W×H (mm) | 1150×900×1650 | 1200×1100×1900 | 1350×1280×2100 | 1650×1480×2200 | |
| Power | 3.8kW | 4.5kW | 5.3kW | 7.5kW | |
| Performance | Temperature range | 20°C~80°C | |||
| Humidity range | 45~98%RH | ||||
| Fluctuation / uniformity | ±0.5°C / ±2°C | ||||
| Humidity deviation | +2 / -3%RH | ||||
| Heat-up time | 20°C~80°C approx. 30 min | ||||
| Cool-down time | 80°C~20°C approx. 30 min | ||||
| Temp. & humidity control system | Controller | Imported programmable touch-screen LCD with Chinese menu display / microcomputer temp. & humidity integrated controller | |||
| Dehumidification system | Evaporator-coil dew-point temperature laminar-flow contact dehumidification | ||||
| Water supply system | Humidification water supply automatically controlled, with waste water recovery for water and energy saving | ||||
| Refrigeration unit | Fully hermetic air-cooled single-stage compression / original French “Tecumseh” compressor | ||||
| Note: 1. “MS” is the model code of the mold test chamber; “JMS” is for the cyclic mold test chamber. 2. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. Specifications are subject to change without notice. |
|||||
