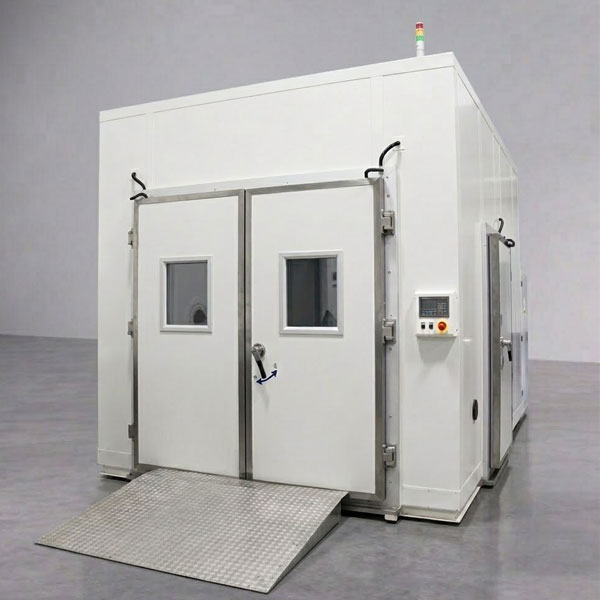

Large High/Low Temperature Walk-in Test Room
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
High/low temperature damp heat test room / large high/low temperature walk-in test room
Application
The high/low temperature damp heat test room is suitable for aerospace products, information and electronic instruments, materials, electrical and electronic products and various electronic components, to test their performance indicators under high/low temperature or damp heat environments.
Chamber Structure
- Room base: the room base is a grid frame welded from 8# channel steel, so that under level conditions it can bear the weight of the room body, personnel and specimens without unevenness or cracking of the room bottom; load capacity 200 kg per square meter.
- Room structure: the room body (shell) consists of six room panels and one double-leaf large door, size 1800×2000mm; the inner side is high-quality stainless steel plate (to prevent rusting of the inner wall during long-term humidity operation), the outer side is high-quality color-coated steel plate (well-known domestic brand); the insulation medium is rigid polyurethane foam — light, impact-resistant and well-insulating; the large door is also made of color-coated steel plate, with inner/outer opening handles so that test personnel can freely open the door from inside the closed room.
Technical Parameters
- Temperature range: -40°C~80°C (variable temperature range: -40°C~60°C)
- Fluctuation / uniformity: ±0.5°C / ±2°C
- Accuracy: temperature 0.1°C, humidity 1%RH; indication accuracy: temperature 0.1°C, humidity 1%RH
Control System
The high/low temperature damp heat test room uses an imported programmable touch-screen LCD with Chinese menu-style display and a microcomputer integrated controller.
Refrigeration System
- Compressor: fully imported semi-hermetic Copeland.
- Auxiliary components: US “ALCO” filter drier, Taiwan “Guanya” oil separator, Italy “Castel” solenoid valve.
- Refrigeration circuit: the refrigeration system adopts a single-unit or binary low-temperature circuit design.
- Air circulation: multi-blade blower provides strong circulation, avoiding any dead zone and ensuring uniform temperature distribution in the test area.
- Air path design: supply and return air path design meets test standards for air pressure and velocity, with fast temperature recovery when the door is opened.
- Independent systems: heating and cooling systems are fully independent, improving efficiency, reducing test cost, extending service life and lowering the failure rate.
Standards
GB/T 2423.1-2001, GB/T 2423.2-2001, GB 10592-89
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
The above test room can be customized according to the customer's technical requirements and dimensions.
Vertical Industry Solutions
Covering Multi-industry Application Scenarios
Providing Customized Environmental Simulation Solutions
Mingsheng equipment is widely used in new energy, automotive, military & aerospace, electronic semiconductor and other fields. We provide testing solutions that meet industry standards with reliable precision to help enhance your product competitiveness.
Power Battery Reliability Testing Solution
For new energy vehicle power batteries and energy storage systems, providing full-chain environmental reliability testing solutions from cells, modules to battery packs. Meeting GB/T 31485, GB/T 31486, IEC 61960 and other standard requirements, supporting -40°C~85°C temperature and humidity cycling, charge/discharge thermal runaway safety protection, high-temperature high-humidity aging and other tests, helping enterprises verify the stability and safety of batteries in extreme environments.
