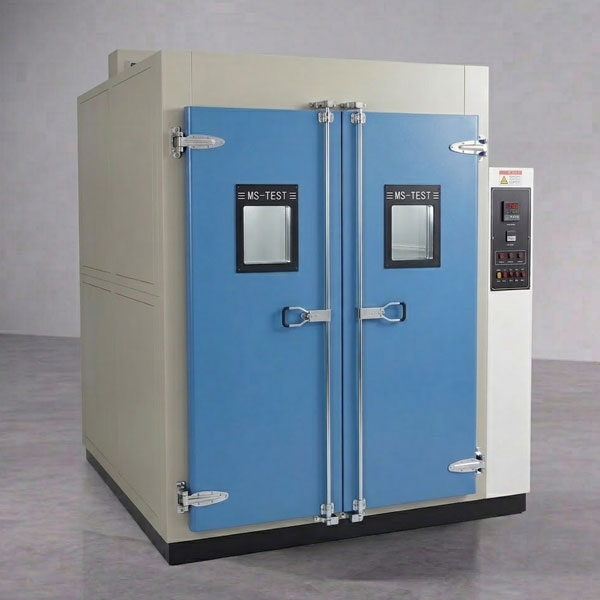

Constant Temperature Aging Room
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
Constant temperature aging room / temperature aging room / high-temperature constant test room
Application
- Room base: the room base is a grid frame welded from 6# channel steel, so that under level conditions it can bear the weight of the room body, personnel and specimens without unevenness or cracking of the room bottom; load capacity 200 kg per square meter;
- Room doors: the room consists of six room panels and two large room doors, door size 1500mm×1600mm; the outer material is high-quality color-coated steel plate and the inner material is galvanized steel plate; the insulation medium is polyurethane foam — light, impact-resistant and well-insulating; the large doors use container-type opening door locks so that test personnel can open them conveniently;
- Air conditioning cabinet: this cabinet is the main body for room temperature regulation and circulation; the heating system, temperature circulation fan and balanced-temperature air inlets/outlets are all installed in the air conditioning cabinet;
Chamber Structure
- Electrical control cabinet: made of A3 steel plate with powder coating, built to match the room body so that its appearance coordinates better with the room;
- Temperature control instrument: fully imported (Japan RKC) high-precision digital P·I·D + S·S·R system same-channel coordinated microcomputer control instrument, with high control accuracy and good stability, improving the stability and service life of control components and interface, thereby effectively ensuring the temperature fluctuation range and test operation;
- Control accuracy: ±0.1°C
- Temperature sensor: PT100 platinum resistance
- Setting mode: touch-type setting, digital and direct display;
- Auto-tuning: PID auto-tuning function reduces the inconvenience caused by manual setting;
- Alarm function: warning signals are provided if errors occur during operation or setting;
Protection System
- Overall equipment over-temperature
- Overall equipment phase-loss / phase-reversal
- Overall equipment timer
- Overall equipment overload
- Other protections: earth leakage, operation indication, audible-visual alarm, and automatic shutdown after alarm
Heating System
- Far-infrared nickel-alloy high-speed electric heater;
- High-temperature system fully independent;
- Temperature control output power is computed by microcomputer to achieve high precision and high electrical efficiency.
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | WDS-045 (customizable by customer) | |
| Working chamber size D×W×H (mm) | 1500×1500×2000 | |
| Room external size D×W×H (mm) | 2100×2050 (including control cabinet width)×2300 | |
| Control cabinet size (mm) | 800×250×1700 | |
| Technical parameters | Temperature range | 40°C~300°C constant |
| Temperature uniformity | ±3.0°C (no load) | |
| Temperature fluctuation | ±0.5°C (no load) | |
| Temperature deviation | ≤±3°C | |
| Heating / cooling rate | 0.7~1°C/min | |
| Time setting range | 0~999 hours | |
| Total power | 12KW | |
| Power supply | AC380 (±10%)V / 50Hz, three-phase five-wire | |
| Room noise | <75dB | |
| Ambient temperature | 5°C~+28°C (24-hour average temperature ≤28°C) | |
| Ambient humidity | ≤85% | |
| The above dimensions can be customized according to customer requirements | ||
Vertical Industry Solutions
Covering Multi-industry Application Scenarios
Providing Customized Environmental Simulation Solutions
Mingsheng equipment is widely used in new energy, automotive, military & aerospace, electronic semiconductor and other fields. We provide testing solutions that meet industry standards with reliable precision to help enhance your product competitiveness.
Power Battery Reliability Testing Solution
For new energy vehicle power batteries and energy storage systems, providing full-chain environmental reliability testing solutions from cells, modules to battery packs. Meeting GB/T 31485, GB/T 31486, IEC 61960 and other standard requirements, supporting -40°C~85°C temperature and humidity cycling, charge/discharge thermal runaway safety protection, high-temperature high-humidity aging and other tests, helping enterprises verify the stability and safety of batteries in extreme environments.
