Product Name

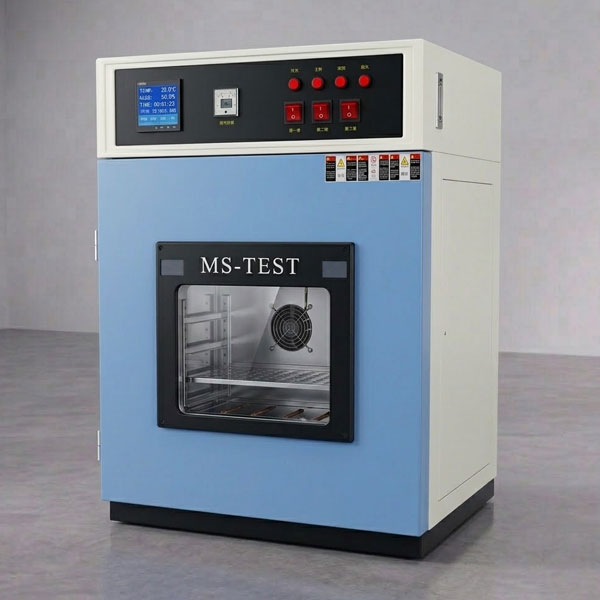

Vacuum UV aging test chamber / UV aging chamber
Application
The vacuum drying chamber is specially designed for drying thermally sensitive, easily decomposable and easily oxidizable substances. Inert gas can be introduced into the chamber, allowing even items with complex compositions to be dried rapidly.
Chamber Structure
- The chamber features a refined design with a non-reactive door handle for easier operation. The outer shell is CNC-machined from high-quality (t=1mm) A3 steel plate with a powder-coated surface for a smoother, more attractive appearance (now upgraded to rounded corners). The inner chamber is imported high-quality mirror-finish SUS304 (t=1mm) stainless steel plate. Double-layer high-temperature-resistant high-tensile sealing strips between the door and the chamber ensure a tightly sealed test area. The electrical system compartment opens with a hinged door for easy maintenance and inspection. Two 1800W naturally cooled UV lamp tubes are installed on the chamber top (quick and easy to replace). The chamber is fitted with an air intake regulating needle valve and a reserved vacuum exhaust port.
Control System
Temperature control uses P·I·D + S·S·R with same-channel coordinated control, improving the stability and service life of the control components and interface.
Heating System
- Far-infrared nickel-alloy high-speed (>2KW×1) electric heater
- Temperature control output power is computed by microcomputer to achieve high precision and high electrical efficiency
Protection System
- Overall equipment over-temperature
- Overall equipment phase-loss / phase-reversal
- Refrigeration system overload
- Overall equipment timer
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | ZZ-125 |
| Working size D×W×H (mm) | 500×500×500 |
| Temperature range | RT+10°C~200°C |
| Temperature uniformity | ±2°C at RT+10°C~200°C (no load) |
| Temperature fluctuation | ±0.5°C (no load) |
| Vacuum degree | Pa / mmHg |
| Temperature deviation | ≤±2°C |
| Heat-up time | RT+10°C~200°C ≤1 hour |
| Time setting range | 0~999 hours |
| Ambient operating temperature | 5°C~+30°C, ≤85%RH |
| Lamp power | 3KW / 6KW |
| Power supply | AC380V 50Hz |
| The above dimensions can be customized according to customer requirements | |
