Product Name

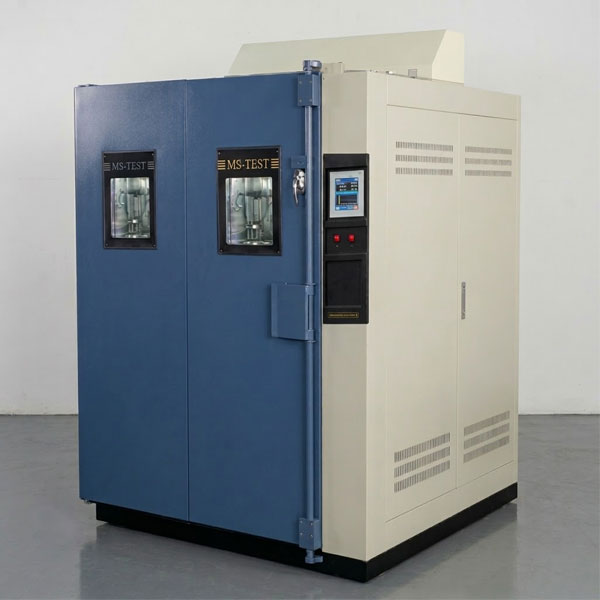

PV humidity-freeze test chamber | solar PV module humidity-freeze test chamber
Application
The PV humidity-freeze test chamber is suitable for thermal cycling, humidity-freeze cycling and high-temperature high-humidity double-85 tests of PV modules (solar panels), to confirm whether the modules can withstand the subsequent negative-temperature effects after high temperature and high humidity, and the fatigue and thermal failure caused by repeated temperature changes; and to determine the thermal stress generated when PV modules are exposed to high humidity and their ability to resist long-term moisture penetration. It is essential test equipment for the PV module industry.
Control System
- Controller: true-color 7.0-inch TFT LCD touch-screen controller with Chinese/English display. For program setting, only the temperature and time parameters need to be set, without extra commands to start the compressor, etc.
- Program capacity: 1,000 program memories, each with 1,000 steps and 100 cycles, and a linking function for 10 programs.
- Communication interface: 1 USB port and 1 LAN port, allowing monitoring of the test process and functions such as automatic start/stop.
- Control mode: PID auto-tuning and FUZZY control, with data acquisition, export and graph viewing functions.
Refrigeration System
- Compressor: the refrigerator uses French Tecumseh fully hermetic compressors. (The compressor is automatically controlled in segments by temperature high/low points to reduce energy consumption and extend compressor service life.)
- Refrigerant: non-fluorocarbon environmentally friendly refrigerant (US DuPont R-404A, R23).
- Condenser: water-cooled shell-and-tube type (cooling tower and its system are provided and installed by the customer).
- Evaporator: fin-type multi-stage with automatic load capacity adjustment.
- Expansion system: refrigeration system with solenoid valve + expansion valve capacity control.
Standards
PV module IEC 61646 test methods:
- a. Thermal cycling test: (Purpose: to determine the ability of modules to withstand thermal mismatch, fatigue and various stresses caused by repeated temperature changes.) Cycle the modules between -40°C±2°C and +85°C±2°C. The temperature change between the maximum and minimum temperatures shall not exceed 100°C/h.
- b. Humidity-freeze test: (Purpose: to determine the ability of modules to withstand high temperature and high humidity followed by sub-zero temperatures.) Change the temperature between +85°C and 25°C at a rate not exceeding 100°C/h, and between 25°C and -40°C at a rate not exceeding 200°C/h.
- c. Damp-heat test: (Purpose: to determine the ability of modules to withstand long-term moisture penetration.) Test temperature: 85°C±2°C; test humidity: 85%±5%; test duration: 1,000 h.
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Performance | Temperature range | -60°C~+100°C | ||||
| Temperature fluctuation | ±0.5°C | |||||
| Temperature deviation | ±2.0°C | |||||
| Heating / cooling rate | Per IEC 61646 test standard (see item 10) | |||||
| Humidity test | 85°C, 85% RH | |||||
| Humidity range | 20%~95% RH | |||||
| Test methods | a. Thermal cycling test b. Humidity-freeze test c. Damp-heat test | |||||
| Sample load capacity | Thin-film PV modules: 6 pcs, 180kg; aluminum alloy shelving rack: 280kg | |||||
| Timer function | 0.1~999.9 (h, min, s) adjustable | |||||
| Control system | Controller | True-color 7.0-inch intelligent touch-screen controller | ||||
| Accuracy range | Setting/display resolution: temperature 0.1°C, humidity 0.1%RH | |||||
| Fixed-value ramp setting | Temperature 0~100°C per minute; humidity 0~9.9%RH per minute | |||||
| Lighting | Chamber interior lighting: high-brightness, low-voltage safety energy-saving lamps | |||||
| Heating system | Dedicated stainless steel bare-wire heaters (can work continuously in high temperature and high humidity environments) | |||||
| Refrigeration system | Fully hermetic air-cooled single-stage compression / original French “Tecumseh” fully hermetic air-cooled binary compression | |||||
| Humidification system | Stainless steel dedicated electric humidifier | |||||
| Materials | Outer chamber | High-quality carbon steel plate, phosphated and electrostatic powder coated / SUS304 stainless steel, hairline finish | ||||
| Inner chamber | SUS304 stainless steel plate | |||||
| Insulation | High-density rigid polyurethane foam (100mm) | |||||
| Door frame insulation | One high-strength silicone gasket | |||||
| Safety protection | Earth leakage, short circuit, over-temperature, motor overheat, compressor over-pressure, overload and over-current protection | |||||
| Power supply | AC380V ±10%, 50±0.5Hz, three-phase five-wire | |||||
| Ambient operating temperature | 5°C~+30°C, ≤85%RH | |||||
| Note: 1. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. 2. Measurement basis: measuring sensor placed at 1/10 of the inner dimension from the inner chamber wall. Specifications are subject to change without notice. | ||||||
