Product Name

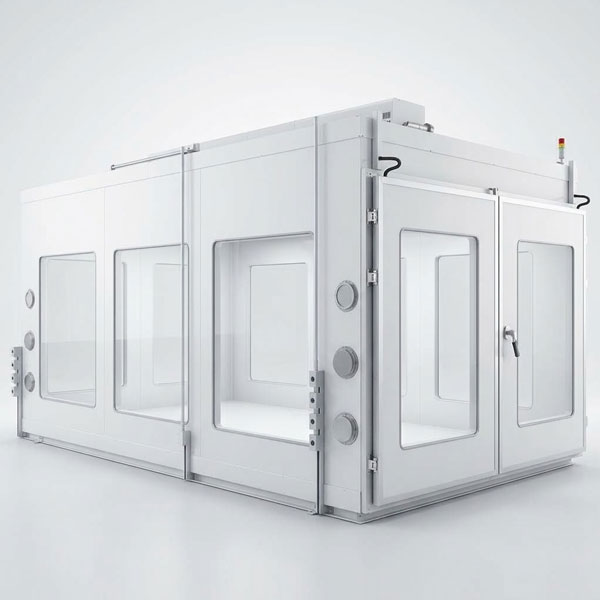

Airbag ignition test chamber
Application
The airbag ignition test chamber can perform ignition (deployment) tests inside and outside the chamber. The test chamber is designed to interlock with the airbag deployment system and automatically completes the low-temperature, door-opening and ignition sequence, providing great convenience for improving test accuracy and saving test time.
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Main parameters | Working chamber size | 5000×2700×2100 (D*W*H) mm | |||||
| External size | 5300×5900×2960 (D*W*H) mm | ||||||
| Temperature range | -60°C~130°C | ||||||
| Humidity deviation | +2~-3% (>75%RH); ±5%RH (≤75%RH) | ||||||
| Controller display resolution | 0.1°C | ||||||
| Heating rate | 2.0°C/min | ||||||
| Cooling rate | 2.0°C/min | ||||||
| Number of lamps | 3 | ||||||
| Total lamp power | 12.0 kW | ||||||
| Door size | 2700×2100mm | ||||||
| Observation area | Windows on door: 2 pcs 1000×1500mm Windows on rear wall (opposite the front door): 2 pcs 1000×1500mm Right-side windows (opposite the left side): 3 pcs 1200×1500mm Left-side windows: 3 pcs 1200×1500mm |
||||||
| Test hole diameter | Ø150 mm | ||||||
| Controller | Imported “UYK” brand temperature instrument | ||||||
| Power supply | AC380V ±10% 50Hz | ||||||
| Note: 1. All test data are measured at 25°C ambient temperature under well-ventilated conditions. 2. The above parameters are for reference only and can be customized according to the customer's specific test requirements. 3. Specifications are subject to change without notice. |
|||||||
