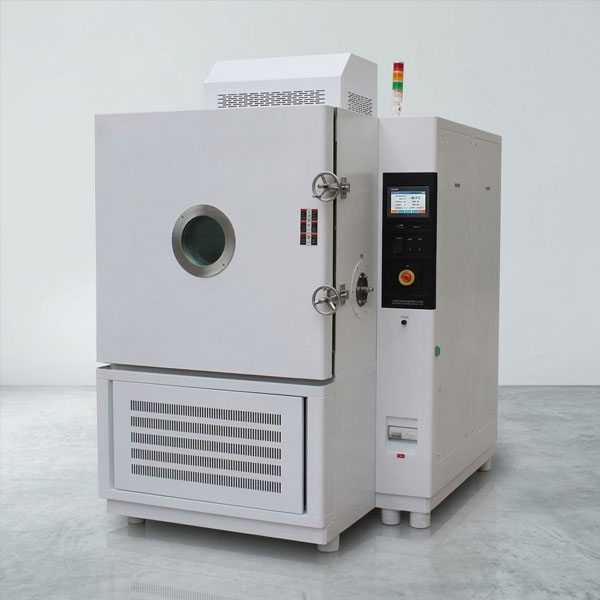

High/Low Temperature Low Pressure Test Chamber
Rapid Response
Providing a 7x24 hour after-sales hotline and technical consultation. Engineers are online in real time to quickly diagnose issues and answer your questions at the first opportunity.
Comprehensive Protection
All equipment comes with a 1-year standard warranty, with free replacement of non-artificially damaged parts during the warranty period. Extended warranty services and lifetime technical maintenance are also available.
Professional Delivery
Covering complete on-site installation, equipment commissioning and hands-on operation training, ensuring front-line operators fully master equipment principles and safety standards.
Genuine Parts
Maintaining stock of core imported components (compressors, controllers, sensors, etc.). When hardware failures occur, genuine parts are dispatched rapidly.
Product Details
Detailed Introduction & Technical Features
Fully understand the core performance, structural design, technical advantages and application scenarios of this product to provide you with a professional selection reference.
Product Name
High/low temperature low pressure test chamber / low pressure laboratory chamber / low pressure test chamber
Application
The high and low temperature low pressure test chamber is mainly used in aviation, aerospace, information and electronics fields to determine the environmental adaptability and reliability of instruments (e.g. altimeters), electrical products, materials, components and equipment under low air pressure, high temperature and low temperature, acting individually or simultaneously. Specimens can be energized during the test for electrical performance parameter measurement.
Chamber Structure
The chamber body is CNC-machined, with an attractive and generous appearance, and uses non-reactive handles for easy operation.
The inner chamber is made of imported high-grade mirror-finish stainless steel (SUS304); the outer shell is A3 steel with powder coating, improving the appearance and cleanliness.
A large observation window with interior lighting keeps the chamber bright, and laminated tempered glass with embedded heating elements allows clear observation of the chamber interior at any time.
The machine bottom is equipped with high-quality lockable PU casters.
Control System
The temperature controller is an imported touch screen with a programmable microcomputer PID controller running SSR output, featuring a large imported color LCD touch screen.
The controller interface is selectable in Chinese or English; the real-time operation curve can be displayed on screen.
It features PID auto-tuning, which instantly corrects temperature change conditions for more precise and stable temperature control.
Optional printer and PC connection.
Refrigeration System
The refrigerator uses original French “Tecumseh” fully hermetic compressors.
US “ALCO” filter drier, Taiwan “Guanya” oil separator, Italy “Castel” solenoid valve.
The refrigeration system adopts a single-unit or binary low-temperature circuit design.
Multi-blade blowers provide strong air circulation, avoiding any dead zone and ensuring uniform temperature distribution in the test area.
The air-path supply and return design meets test standards for air pressure and velocity, and ensures fast temperature recovery when the door is opened.
Heating and cooling systems are fully independent, improving efficiency, reducing test cost, extending service life and lowering the failure rate.
Standards
GB/T 2423.21, GJB 150.6-86, GJB 150.3-86, GJB 150.4-86, GB/T 2423.1-1989, GB/T 2423.2-1989
Technical Specifications
Detailed Technical Parameters & Specifications
The following are the core technical parameters and specifications of this product. All data are measured under standard working conditions; specific parameters are subject to the actual delivered equipment.
| Model | DQY-100 | DQY-225 | DQY-500 | DQY-800 | DQY-010 | |
| Working size D×W×H (mm) | 450×450×500 | 500×600×750 | 700×800×900 | 800×1000×1000 | 1000×1000×1000 | |
| External size D×W×H (mm) | 1150×1050×1750 | 1200×1100×1900 | 1450×1400×2150 | 1500×1550×2200 | 1720×1580×2280 | |
| Power A/B/C/D (kW) | 3.0/4.0/4.5/6.0 | 3.5/5.0/5.5/6.5 | 6.0/7.0/7.5/8.5 | 7.0/9.0/11.0/12.5 | 9.0/10.0/11.5/13.0 | |
| Performance | Temperature range | A: -20°C~+150°C B: -40°C~+150°C C: -60°C~+150°C D: -70°C~+150°C | ||||
| Fluctuation / uniformity | ±0.5°C (atmospheric pressure, no load) / ≤±2°C (atmospheric pressure, no load) | |||||
| Temperature deviation | ≤±3°C (atmospheric pressure, no load) | |||||
| Heating rate | 1.0~3.0°C/min | |||||
| Cooling rate | 0.7~1.0°C/min | |||||
| Pressure range | Atmospheric pressure~0.5 kPa (adjustable) | |||||
| Pressure deviation | Atmospheric~40 kPa: ±1.8 kPa; 40 kPa~4 kPa: ±4.5%; 4 kPa~0.5 kPa: ±0.1 kPa | |||||
| Pressure drop time | ≤45 min (atmospheric~0.5 kPa) | |||||
| Control system | Controller | Imported PLC controller, color LCD touch screen | ||||
| Accuracy | Setting accuracy: temperature 0.1°C; indication accuracy: temperature 0.1°C; resolution: 0.1°C | |||||
| Sensor | Platinum resistance PT100Ω/MV | |||||
| Heating system | Fully independent system, nickel-chromium alloy electric heaters | |||||
| Refrigeration system | Original French “Tecumseh” fully hermetic air-cooled single-stage / binary compression refrigeration | |||||
| Circulation system | Temperature-resistant low-noise motor, multi-blade centrifugal blower | |||||
| Materials | Outer chamber | High-quality carbon steel plate, phosphated and electrostatic powder coated / SUS304 stainless steel, hairline finish | ||||
| Inner chamber | SUS304 stainless steel high-quality mirror plate | |||||
| Insulation | Rigid polyurethane foam, ultra-fine glass fiber wool | |||||
| Door insulation | Double-layer high/low-temperature aging-resistant silicone rubber door seal | |||||
| Standard configuration | 1 set of multi-layer heated-defrost viewing window with lighting, 2 specimen shelves, 1 test lead port (Ø25/50/100 mm) | |||||
| Safety protection | Earth leakage, short circuit, over-temperature, motor overheat, compressor over-pressure, overload and over-current protection | |||||
| Timer function | 0.1~999.9 (s, min, h) adjustable | |||||
| Power supply | AC380V ±10%, 50±0.5 Hz, three-phase five-wire | |||||
| Ambient operating conditions | 5°C~+30°C, ≤85%RH | |||||
| Note: 1. “DQY” is the model code of the high/low temperature low pressure test chamber. 2. All above data are measured at ambient temperature (QT) 25°C with the working chamber under no load. 3. Non-standard custom “walk-in high/low temperature low pressure test room” can be built per customer requirements. Specifications are subject to change without notice. |
||||||
